Same model may have multiple batches, images only for reference.

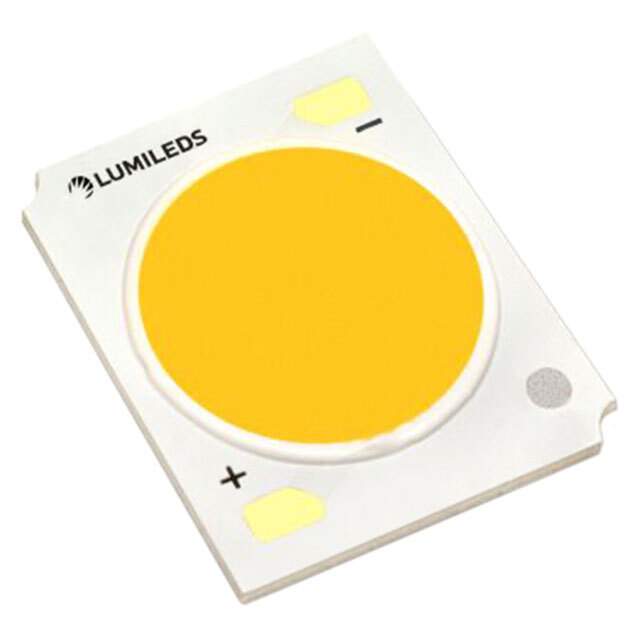

L2C5-40701208E1500 Real Image
Same model may have multiple batches, images only for reference.

L2C5-40701208E1500

Part No L2C5-40701208E1500
Manufacturer Lumileds
Catalog LED Lighting - COBs, Engines, Modules
Description LED COB CORE RANGE GEN3 NW RECT / LED Lighting COBs Engines Modules Chip On Board (COB) series White, Neutral Rectangle
Datasheet
L2C5-40701208E1500 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Lighting - COBs, Engines, Modules, Strips
Mfr Lumileds
Series LUXEON CoB Core Range Gen 3
Package Tube
Type Chip On Board (COB)
Color White, Neutral
CCT (K) 4000K 3-Step MacAdam Ellipse
Configuration Rectangle
Luminous Flux @ Current/Temperature 4900lm (Typ)
Current - Test 900mA
Temperature - Test 85°C
Voltage - Forward (Vf) (Typ) 34.8V
Lumens/Watt @ Current - Test 156 lm/W
Current - Max 1.8A
CRI (Color Rendering Index) 70
Viewing Angle 115°
Dimension 20.00mm L x 24.00mm W
Height 1.50mm
Light Emitting Surface (LES) 15.00mm Dia
Lens Type Flat
Base Product Number L2C5
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Other Names 1416-1838-5
Standard Package 100
Win Source Part Number 959381-L2C5-40701208E1500
Ultra Librarian 3D Model Ultra Librarian L2C5-40701208E1500 CAD Model

Description

The LUXEON CoB Core Range Gen 3 series from Lumileds is a chip on board (COB) LED lighting component that is perfect for optoelectronics applications.

  • Viewing Angle: 115 degrees
  • Colors: Available in both white and neutral colors
  • Luminous Flux: 4900lm (Typ) @ 85°C
  • Color Rendering Index: 70
  • Package: Tube
  • Standard Package: 100
  • Voltage: 34.8V
  • Maximum Current: 1.8A
  • Description: It is a reliable and efficient component.
  • Conclusion: The LUXEON CoB Core Range Gen 3 series is an excellent choice for those who need a high-quality, reliable, and efficient LED lighting component.
