Same model may have multiple batches, images only for reference.

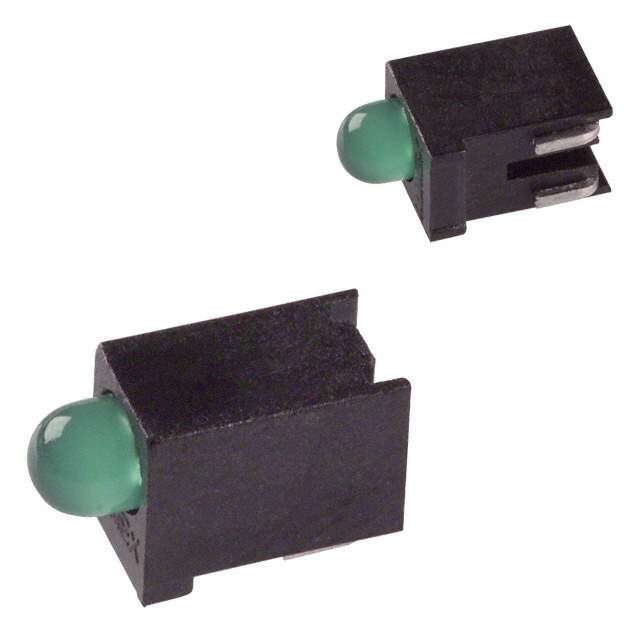

SSF-LXH305GD-TR Real Image
Same model may have multiple batches, images only for reference.

SSF-LXH305GD-TR

Part No SSF-LXH305GD-TR
Manufacturer Lumex Opto/Components Inc.
Catalog LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Description LED 3MM RA GREEN DIFFUSED SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Optoelectronics
Estimated Pruduction Lead Time 17 Weeks
Features LED Circuit Board Indicator LED Circuit Board Indicator Single Green Diffused, Tinted 2.2V 20mA Round with Domed Top 3mm, T-1 Surface Mount, Right Angle
Manufacturer Lumex Opto/Components Inc.
Package Reel - TR
Mounting Surface Mount, Right Angle
Family Name SSF-LXH305
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.40.2000
Other Part Number 67-1375-1-NDR, LU60435TR, Q515779DO, Q1468604A, LU60435CT, SSFLXH305GDTR, 67-1375-6, LU60435TR-NDL, 67-1375-2-NDR, 67-1375-1, 67-1375-2
Quantity per package 1000
Popularity High
Supply and Demand Status Balance
Win Source Part Number 897678-SSF-LXH305GD-TR
Ultra Librarian 3D Model Ultra Librarian SSF-LXH305GD-TR CAD Model

Description

The Lumex Opto/Components Inc. LED Circuit Board Indicator is a single green diffused, tinted LED with a round, domed top.

  • Voltage Rating: 2.2V
  • Current Rating: 20mA
  • Mounting: Surface mount with a right angle mounting style
  • Family: SSF-LXH305 family
  • Category: Optoelectronics
  • Package: reel - TR package with a quantity of 1000 per package
  • ECCN: EAR99
  • Popularity: high
  • Supply and Demand Status: balanced
  • MSL Level: 1 (Unlimited)
  • Estimated Production Lead Time: 17 weeks
  • REACH: unaffected
  • HTSUS: 8541.40.2000
  • Other Part Numbers: 67-1375-1-NDR, LU60435TR, Q515779DO, Q1468604A, LU60435CT, SSFLXH305GDTR, 67-1375-6, LU60435TR-NDL, 67-1375-2-NDR, and 67-1375-1
