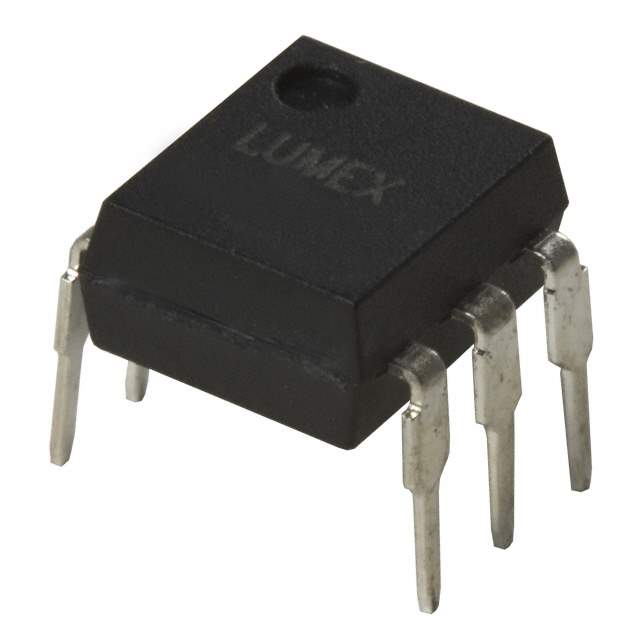

The Lumex Opto/Components Inc.'s OCP-PCTB116/E is an isolator product from Lumex Opto/Components Inc.

• Packaging: Tube
• Mounting Type: Through Hole
• Operating Temperature: -30°C to 100°C
• Package: 6-DIP (0.300", 7.62mm)
• Output Type: Transistor with Base
• Input Type: DC
• Voltage-Forward (Vf) (Typ): 1.2V
• Rise/Fall Time (Typ): 5μs, 4μs
• Number of Channels: 1
• Voltage-Isolation: 5000Vrms
• Family Name: OCP-PCTB116/E
• Categories: Isolators
• Manufacturer Package: 6-DIP
• Output Voltage MAX: 60V
• Output Current Per Channel: 50mA
• Current - DC Forward (If) (Maximum): 50mA
• Current Transfer Ratio (Minimum): 60 percent @ 2mA
• Current Transfer Ratio (Maximum): 600 percent @ 2mA
• Vce Saturation (Maximum): 300mV
• Alternative Parts: LDA102
• Introduction Date: November 13, 2001
• ECCN: EAR99
• Country of Origin: China
• Estimated EOL Date: 2026
• Supply and Demand Status: Limited
