Same model may have multiple batches, images only for reference.

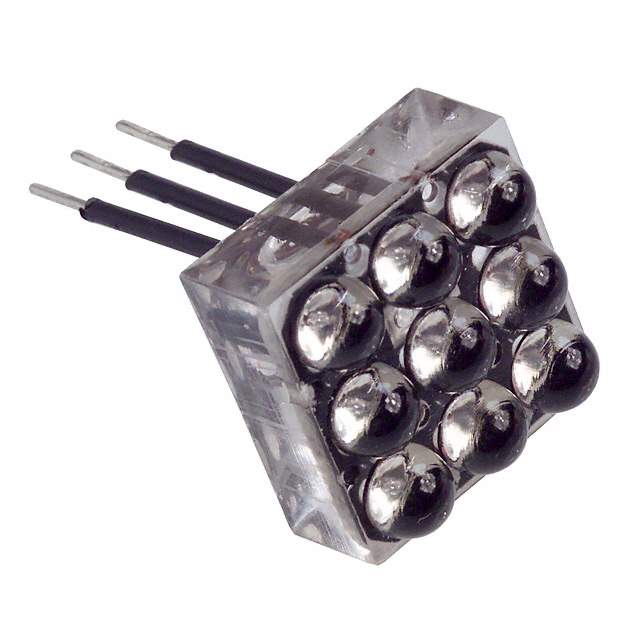

SSP-LXS06762S9A Real Image
Same model may have multiple batches, images only for reference.

SSP-LXS06762S9A

Part No SSP-LXS06762S9A
Manufacturer Lumex Opto/Components Inc.
Catalog Display Modules - LED Dot Matrix and Cluster
Description LED 17MM SQR 9LED-CLSTR 3RED6GRN / Dot Matrix Display Module 3 x 3 Common Anode 3 Red, 6 Green 5.4V Red, 6.6V Green 0.67" L x 0.67" W x 0.41" H (17.00mm x 17.00mm x 10.30mm)
Datasheet
SSP-LXS06762S9A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>Display Modules - LED Dot Matrix and Cluster
Mfr Lumex Opto/Components Inc.
Package Bulk
Product Status Obsolete
Millicandela Rating 300mcd Green, 2000mcd Red
Internal Connection Common Anode
Dimension 0.67" L x 0.67" W x 0.41" H (17.00mm x 17.00mm x 10.30mm)
Color 3 Red, 6 Green
Configuration 3 x 3
Voltage - Forward (Vf) (Typ) 5.4V Red, 6.6V Green
Other Names 67-1603,67-1603,441-1071
Standard Package 100
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1242532-SSP-LXS06762S9A
Ultra Librarian 3D Model Ultra Librarian SSP-LXS06762S9A CAD Model

Description

The SSP-LXS06762S9A is a LED dot matrix and cluster display module from Lumex Opto/Components Inc.

  • Configuration: 3 x 3
  • Colors: 3 red and 6 green
  • Internal Connection: common anode
  • Millicandela Rating: 300mcd for green and 2000mcd for red
  • Forward Voltage: 6.6V for green and 5.4V for red
  • Standard Package: 100
  • Dimension: 0.67" L x 0.67" W x 0.41" H (17.00mm x 17.00mm x 10.30mm)
