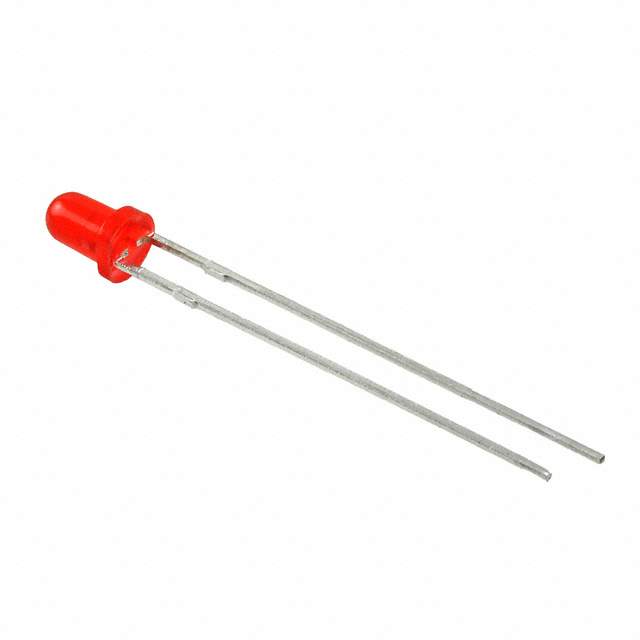

SSL-LX3054HD Real Image
Same model may have multiple batches, images only for reference.

SSL-LX3054HD

Part No SSL-LX3054HD
Manufacturer Lumex Opto/Components Inc.
Catalog LED Indication - Discrete
Description LED RED DIFFUSED T-1 T/H / Red LED Indication - Discrete 2V Radial
Datasheet
SSL-LX3054HD Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Indication - Discrete
Mfr Lumex Opto/Components Inc.
Package Bulk
Color Red
Configuration Standard
Lens Color Red
Lens Transparency Diffused
Millicandela Rating 3mcd
Lens Style Round with Domed Top
Lens Size 3mm, T-1
Voltage - Forward (Vf) (Typ) 2V
Current - Test 20mA
Viewing Angle 60°
Mounting Type Through Hole
Wavelength - Peak 700nm
Package / Case Radial
Supplier Device Package T-1
Height (Max) 5.25mm
Base Product Number SSL-LX3054
Other Names Q6558695A,67-2295,SSL-LX3054HDR,SSL-LX3054HD,SSL-LX3054HDL
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1242025-SSL-LX3054HD
Ultra Librarian 3D Model Ultra Librarian SSL-LX3054HD CAD Model

Description

The SSL-LX3054HD is a red LED indication component manufactured by Lumex Opto/Components Inc.

  • Viewing Angle: 60°
  • Millicandela Rating: 3mcd
  • Voltage-Forward (Vf): 2V
  • Current-Test: 20mA
  • Mounting: Through hole mounting
  • Package: Radial package
  • Standard Package: Each standard package contains 1,000 components
