Same model may have multiple batches, images only for reference.

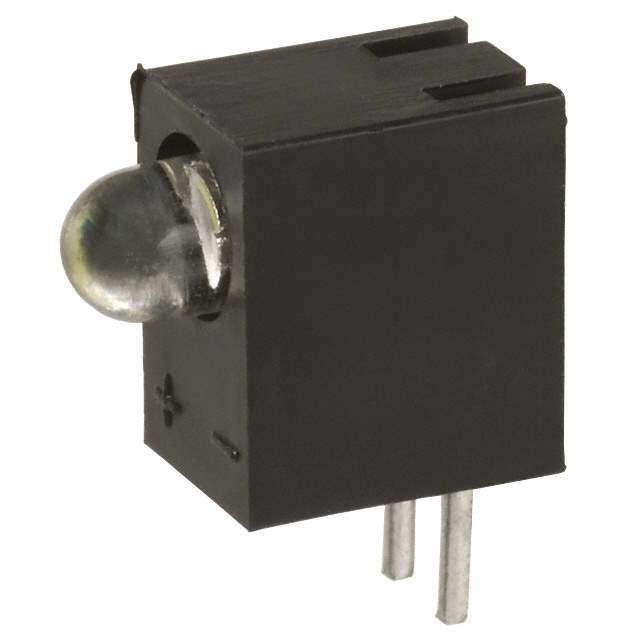

SSF-LXH103UWC Real Image
Same model may have multiple batches, images only for reference.

SSF-LXH103UWC

Part No SSF-LXH103UWC
Manufacturer Lumex Opto/Components Inc.
Catalog LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Description LED 3MM BRIGHT WHITE WATER CLEAR / LED Circuit Board Indicator LED Circuit Board Indicator Single White Diffused, White 3.6V 20mA Through Hole, Right Angle
Datasheet
SSF-LXH103UWC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Mfr Lumex Opto/Components Inc.
Package Bulk
Color White
Wavelength - Peak 550nm
Configuration Single
Current 20mA
Millicandela Rating 1200mcd
Viewing Angle 34°
Lens Type Diffused, White
Voltage Rating 3.6V
Mounting Type Through Hole, Right Angle
Base Product Number SSF-LXH103
Other Names 67-2026,SSFLXH103UWC
Standard Package 500
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1238149-SSF-LXH103UWC
Ultra Librarian 3D Model Ultra Librarian SSF-LXH103UWC CAD Model

Description

The Lumex Opto/Components Inc. SSF-LXH103UWC is an LED used for circuit board indicators, arrays, light bars, and bar graphs.

  • Package: Bulk package of 500
  • Voltage Rating: 3.6V
  • Viewing Angle: 34 degrees
  • Millicandela Rating: 1200mcd
  • MSL Level: 1 (Unlimited)
  • REACH: REACH unaffected
  • HTSUS: 8541.41.0000
  • Also Known As: 67-2026, SSFLXH103UWC
