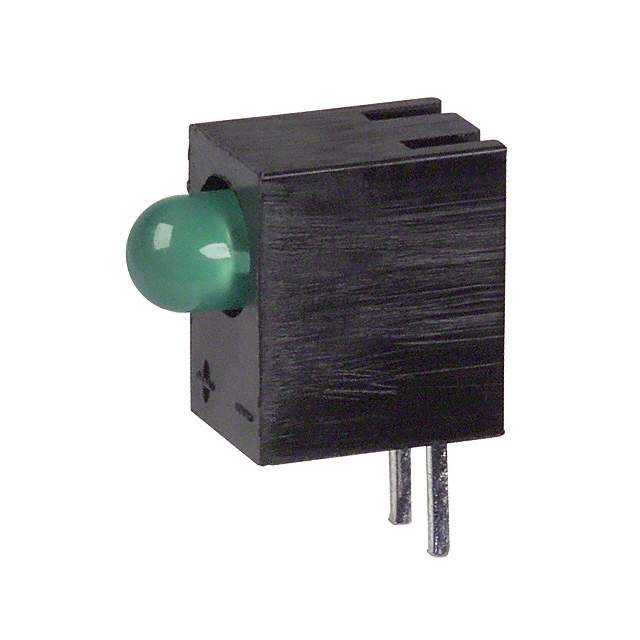

SSF-LXH103LGD Real Image
Same model may have multiple batches, images only for reference.

SSF-LXH103LGD

Part No SSF-LXH103LGD
Manufacturer Lumex Opto/Components Inc.
Catalog LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Description LED 3MM RA FAULT-IND GREEN PCMT / LED Circuit Board Indicator LED Circuit Board Indicator Single Green Diffused, Tinted 2.1V 20mA Round with Domed Top 3mm, T-1 Through Hole, Right Angle
Datasheet
SSF-LXH103LGD Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Mfr Lumex Opto/Components Inc.
Package Bulk
Color Green
Wavelength - Peak 565nm
Configuration Single
Current 20mA
Millicandela Rating 15mcd
Viewing Angle 80°
Lens Type Diffused, Tinted
Lens Style Round with Domed Top
Lens Size 3mm, T-1
Voltage Rating 2.1V
Mounting Type Through Hole, Right Angle
Base Product Number SSF-LXH103
Other Names LU20125,67-1240,67-1240R,SSFLXH103LGD,Q1638690
Standard Package 500
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1238221-SSF-LXH103LGD
Ultra Librarian 3D Model Ultra Librarian SSF-LXH103LGD CAD Model

Description

This LED is manufactured by Lumex Opto/Components Inc. and has a Win Source Part Number of 1238221-SSF-LXH103LGD.

  • Category: Optoelectronics
  • Configuration: Single
  • Viewing Angle: 80 degrees
  • Millicandela Rating: 15mcd
  • Wavelength Peak: 565nm
  • Voltage Rating: 2.1V
  • Package: Bulk
  • Standard Package: 500
  • Lens Type: Diffused, Tinted
  • Mounting Type: Through Hole, Right Angle
  • Lens Style: Round with a Domed Top
  • Lens Size: 3mm, T-1
  • MSL Level: 1 (Unlimited)
  • REACH Status: REACH Unaffected
  • HTSUS: 8541.41.0000
