Same model may have multiple batches, images only for reference.

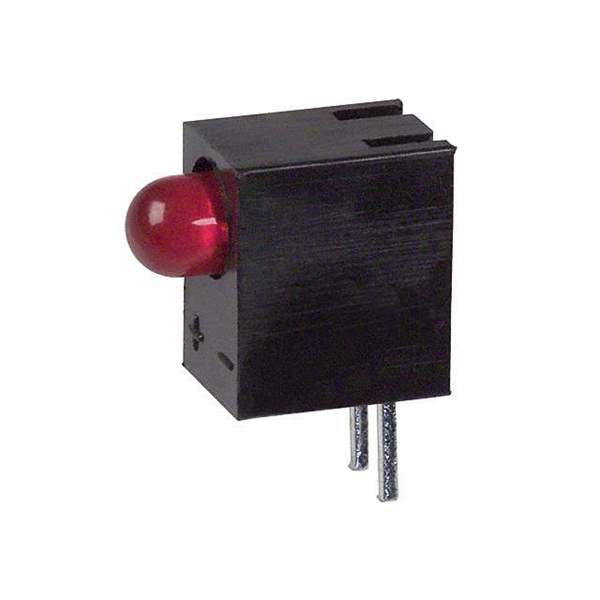

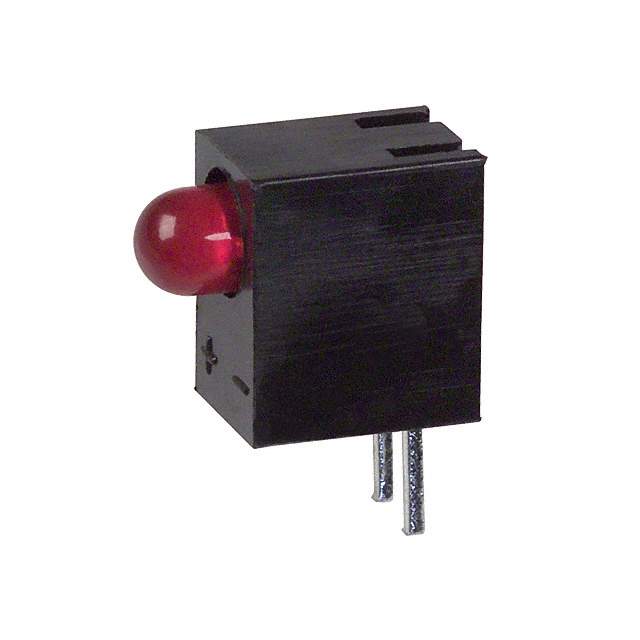

SSF-LXH103ID-5V Real Image
Same model may have multiple batches, images only for reference.

SSF-LXH103ID-5V

Part No SSF-LXH103ID-5V
Manufacturer Lumex Opto/Components Inc.
Catalog LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Description LED 3MM RA 5V FAULT-IND RED PCMT / LED Circuit Board Indicator LED Circuit Board Indicator Single Red Diffused, Tinted 5V 12mA Round with Domed Top 3mm, T-1 Through Hole, Right Angle
Datasheet
SSF-LXH103ID-5V Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Mfr Lumex Opto/Components Inc.
Package Bulk
Color Red
Wavelength - Peak 635nm
Configuration Single
Current 12mA
Millicandela Rating 9mcd
Viewing Angle 80°
Lens Type Diffused, Tinted
Lens Style Round with Domed Top
Lens Size 3mm, T-1
Voltage Rating 5V
Mounting Type Through Hole, Right Angle
Base Product Number SSF-LXH103
Other Names LU20131,SSFLXH103ID5V,67-1241,67-1241R
Standard Package 500
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1238174-SSF-LXH103ID-5V
Ultra Librarian 3D Model Ultra Librarian SSF-LXH103ID-5V CAD Model

Description

The SSF-LXH103ID-5V is a single configuration red LED from Lumex Opto/Components Inc.

  • Manufacturer: Lumex Opto/Components Inc.
  • Configuration: Single
  • Voltage Rating: 5V
  • Current: 12mA
  • MSL Level: 1 (unlimited)
  • REACH: Unaffected
