Same model may have multiple batches, images only for reference.

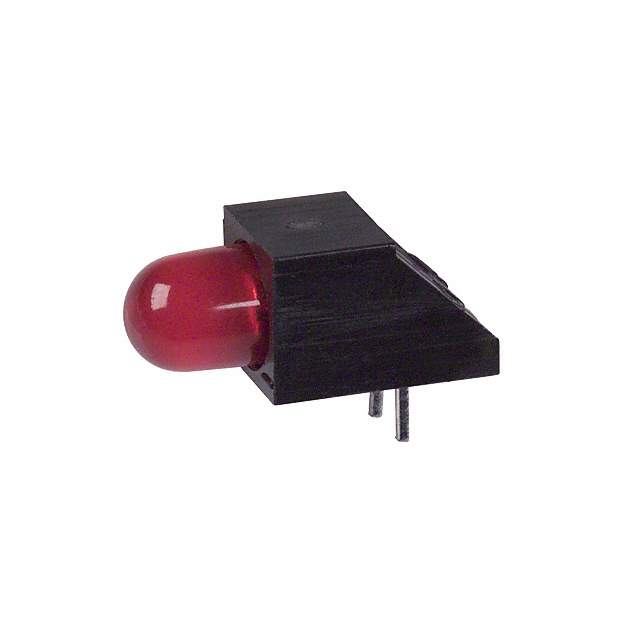

SSF-LXH100ID-01 Real Image
Same model may have multiple batches, images only for reference.

SSF-LXH100ID-01

Part No SSF-LXH100ID-01
Manufacturer Lumex Opto/Components Inc.
Catalog LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Description LED 5MM RA RED DIFF PC MOUNT / LED Circuit Board Indicator LED Circuit Board Indicator Single Red Diffused, Tinted 2V 20mA Round with Domed Top 5mm, T-1 3/4 Through Hole, Right Angle
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Mfr Lumex Opto/Components Inc.
Package Bulk
Color Red
Wavelength - Peak 635nm
Configuration Single
Current 20mA
Millicandela Rating 40mcd
Viewing Angle 60°
Lens Type Diffused, Tinted
Lens Style Round with Domed Top
Lens Size 5mm, T-1 3/4
Voltage Rating 2V
Mounting Type Through Hole, Right Angle
Base Product Number SSF-LXH100
Other Names Q7675011AB,SSFLXH100ID01,67-1309R,SSF-LXH100ID-1,LU20371,67-1309
Standard Package 500
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1238166-SSF-LXH100ID-01
Ultra Librarian 3D Model Ultra Librarian SSF-LXH100ID-01 CAD Model

Description

The Lumex Opto/Components Inc. 1238166-SSF-LXH100ID-01 is a red LED circuit board indicator, array, light bars, bar graphs product.

  • Manufacturer: Lumex Opto/Components Inc.
  • Standard Package: 500 units
  • Configuration: Single
  • Viewing Angle: 60°
  • Millicandela Rating: 40mcd
  • Voltage Rating: 2V
  • Wavelength-Peak: 635nm
  • Current: 20mA
  • Lens Type: Diffused, tinted
  • Mounting Type: Through hole, right angle
  • Lens Style: Round with domed top
  • Lens Size: 5mm, T-1 3/4
  • REACH: Unaffected
  • HTSUS: 8541.41.0000
