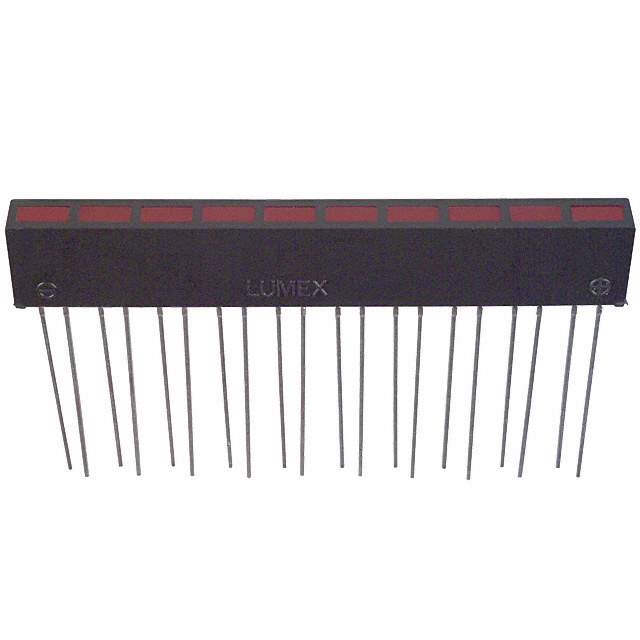

Same model may have multiple batches, images only for reference.

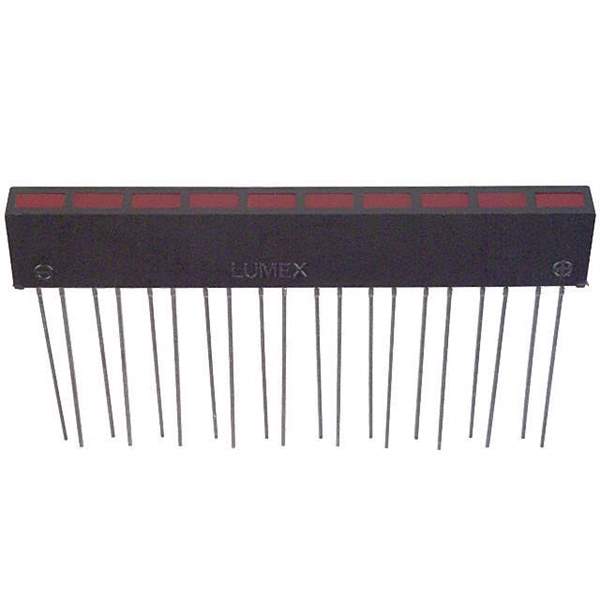

SSA-LXH1025SRD Real Image
Same model may have multiple batches, images only for reference.

SSA-LXH1025SRD

Part No SSA-LXH1025SRD
Manufacturer Lumex Opto/Components Inc.
Catalog LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Description LED ARRAY 2.5X5MM 10-SEG SUP RED / LED Circuit Board Indicator LED Circuit Board Indicator Bar - 10 Wide, SIP Red (x 10) Diffused, Tinted 1.7V 30mA Rectangle with Flat Top 5.00mm x 2.50mm Through Hole
Datasheet
SSA-LXH1025SRD Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Mfr Lumex Opto/Components Inc.
Package Bulk
Color Red (x 10)
Wavelength - Peak 660nm
Configuration Bar - 10 Wide, SIP
Current 30mA
Millicandela Rating 50mcd
Viewing Angle 110°
Lens Type Diffused, Tinted
Lens Style Rectangle with Flat Top
Lens Size 5.00mm x 2.50mm
Voltage Rating 1.7V
Mounting Type Through Hole
Base Product Number SSA-LXH1025
Other Names LU2002B1,67-1208R,67-1208,SSALXH1025SRD,SSA-LXB1025SRD
Standard Package 200
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1238201-SSA-LXH1025SRD
Ultra Librarian 3D Model Ultra Librarian SSA-LXH1025SRD CAD Model

Description

The Lumex Opto/Components Inc. SSA-LXH1025SRD is a red LED bar, which is a through-hole mounted component.

  • Lens Type: diffused, tinted
  • Lens Style: rectangle with a flat top
  • Lens Size: 5.00mm x 2.50mm
  • Viewing Angle: 110 degrees
  • LED Bar: made up of 10 LEDs
  • Millicandela Rating: 50mcd
  • Peak Wavelength: 660nm
  • Voltage Rating: 1.7V
  • Current Rating: 30mA
  • Packaging: bulk packaging
  • Standard Package: 200
