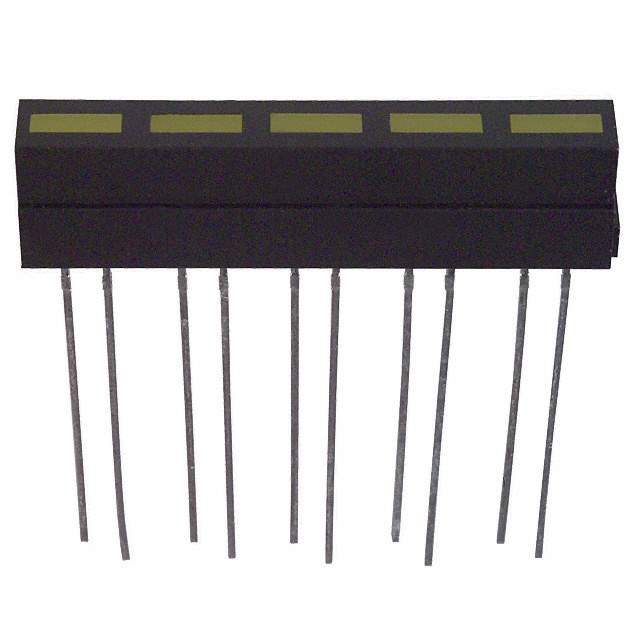

SSA-LXB525YD Real Image
Same model may have multiple batches, images only for reference.

SSA-LXB525YD

Part No SSA-LXB525YD
Manufacturer Lumex Opto/Components Inc.
Catalog LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Description LED ARRAY 2X5MM 5-SEG YELLOW / LED Circuit Board Indicator LED Circuit Board Indicator Bar - 5 Wide, SIP Yellow (x 5) Diffused, Tinted 2V 30mA Rectangle with Flat Top 5.30mm x 1.80mm Through Hole
Datasheet
SSA-LXB525YD Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Mfr Lumex Opto/Components Inc.
Package Bulk
Color Yellow (x 5)
Wavelength - Peak 585nm
Configuration Bar - 5 Wide, SIP
Current 30mA
Millicandela Rating 10mcd
Viewing Angle 110°
Lens Type Diffused, Tinted
Lens Style Rectangle with Flat Top
Lens Size 5.30mm x 1.80mm
Voltage Rating 2V
Mounting Type Through Hole
Base Product Number SSA-LXB525
Other Names LU20017,67-1203R,SSALXB525YD,67-1203
Standard Package 210
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1238135-SSA-LXB525YD
Ultra Librarian 3D Model Ultra Librarian SSA-LXB525YD CAD Model

Description

The Lumex Opto/Components Inc. SSA-LXB525YD is a yellow LED bar, which is a through-hole mounted component.

  • Lens Type: Diffused, tinted
  • Lens Style: Rectangle with a flat top
  • Lens Size: 5.30mm x 1.80mm
  • Viewing Angle: 110 degrees
  • LED Bar: Made up of 5 LEDs
  • Millicandela Rating: 10mcd
  • Peak Wavelength: 585nm
  • Voltage Rating: 2V
  • Current Rating: 30mA
  • Packaging: Bulk packaging
  • Standard Package: 210
  • Use: Perfect for use in a variety of applications, including circuit board indicators, arrays, light bars, and bar graphs
