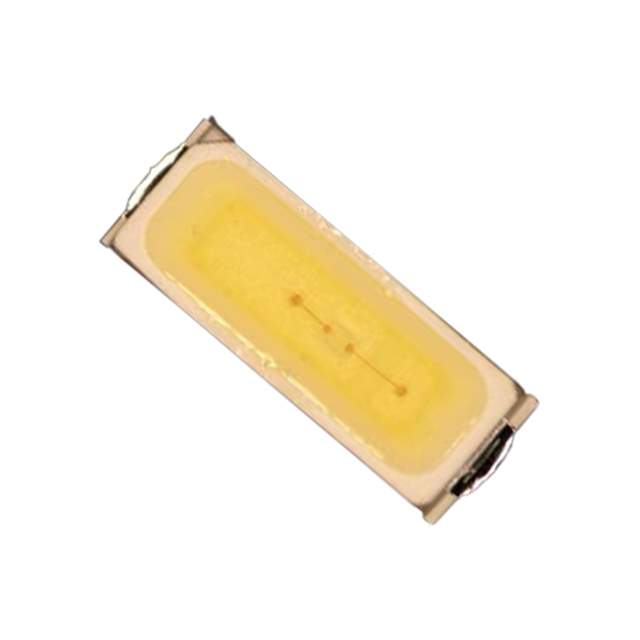

Same model may have multiple batches, images only for reference.

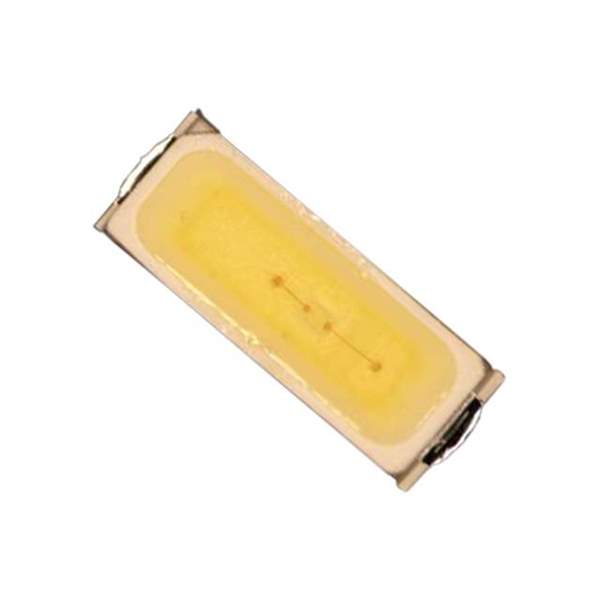

SML-LX4014UWC-TR Real Image
Same model may have multiple batches, images only for reference.

SML-LX4014UWC-TR

Part No SML-LX4014UWC-TR
Manufacturer Lumex Opto/Components Inc.
Catalog LED Lighting - White
Description 4.0X1.4MM ULTRA BRIGHT WHITE SMT / LED Lighting series White, Cool 6500K 3.1V 60mA 120° 1606 (4014 Metric)
Datasheet
SML-LX4014UWC-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Lighting - White
Mfr Lumex Opto/Components Inc.
Series TitanBrite™
Package Tape & Reel
Color White, Cool
CCT (K) 6500K
Flux @ 25°C, Current - Test 21lm (Typ)
Current - Test 60mA
Voltage - Forward (Vf) (Typ) 3.1V
Lumens/Watt @ Current - Test 113 lm/W
Current - Max 60mA
Viewing Angle 120°
Mounting SMD (SMT)
Package / Case 1606 (4014 Metric)
Supplier Device Package SMD
Dimension 0.150" L x 0.055" W (3.80mm x 1.40mm)
Height - Seated (Max) 0.024" (0.60mm)
Base Product Number SML-LX4014
Other Names 67-2291-6,67-2291-1,67-2291-2
Standard Package 4,000
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1240268-SML-LX4014UWC-TR
Ultra Librarian 3D Model Ultra Librarian SML-LX4014UWC-TR CAD Model

Description

The Lumex Opto/Components Inc. electronic component is a SML-LX4014UWC-TR, which is a white LED light.

  • Color: White
  • Viewing Angle: 120 degrees
  • Voltage - Forward (Vf) (Typ): 3.1V
  • Lumens/Watt @ Current-Test: 113lm/W
  • CCT: 6500K
  • Mounting Type: Surface Mount
  • Dimension: 0.150 inches L x 0.055 inches W
  • Standard Package: 4,000
