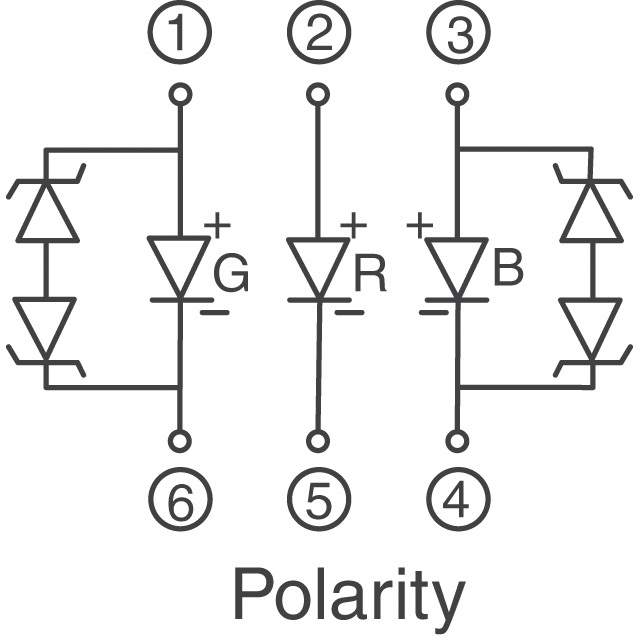

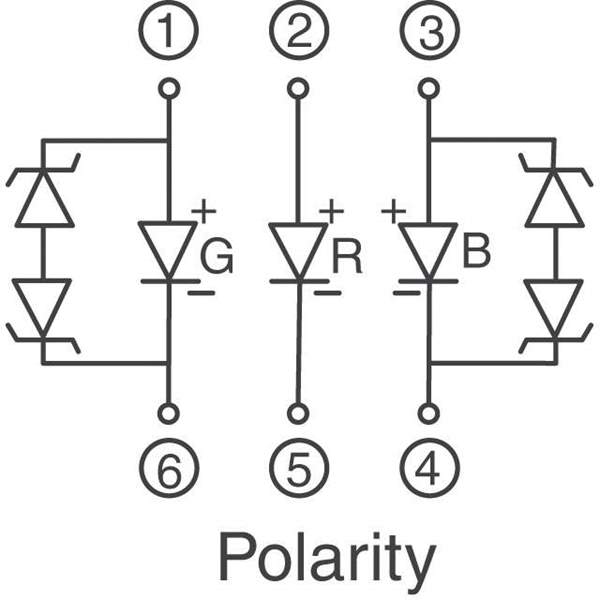

Same model may have multiple batches, images only for reference.

SML-LX3939RGBC-TR

Name: SML-LX3939RGBC-TR
Brand: Lumex Opto/Components Inc.
SKU: 1240299
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	SML-LX3939RGBC-TR
Manufacturer	Lumex Opto/Components Inc.
Catalog	LED Lighting - Color
Description	LED TITANBRITE RGB 626/525/470 / LED Lighting Color series Red, Green, Blue (RGB) 626nm Red, 525nm Green, 470nm Blue 6-SMD, No Lead Exposed Pad
Datasheet	SML-LX3939RGBC-TR Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Optoelectronics>LED Lighting - Color
Mfr	Lumex Opto/Components Inc.
Series	TitanBrite™
Package	Tape & Reel
Product Status	Obsolete
Color	Red, Green, Blue (RGB)
Wavelength	626nm Red, 525nm Green, 470nm Blue
Current - Test	350mA Red, 350mA Green, 350mA Blue
Voltage - Forward (Vf) (Typ)	2.1V Red, 3.5V Green, 3.5V Blue
Lumens/Watt @ Current - Test	34 lm/W Red, 29 lm/W Green, 7 lm/W Blue
Current - Max	300mA Red, 350mA Green, 350mA Blue
Luminous Flux @ Current/Temperature	25lm Red, 35lm Green, 8lm Blue
Temperature - Test	25°C
Viewing Angle	130°
Mounting	SMD (SMT)
Package / Case	6-SMD, No Lead Exposed Pad
Supplier Device Package	SMD
Dimension	0.398" L x 0.398" W (10.10mm x 10.10mm)
Height - Seated (Max)	0.096" (2.45mm)
Other Names	67-2086-2,67-2086-1,SMLLX3939RGBCTR,67-2086-6
Standard Package	300
MSL Level	6 (Time on Label)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.41.0000
Win Source Part Number	1240299-SML-LX3939RGBC-TR
Ultra Librarian 3D Model	Ultra Librarian SML-LX3939RGBC-TR CAD Model

Alternative Products

Description

The SML-LX3939RGBC-TR LED from Lumex Opto/Components Inc. is a TitanBrite™ RGB LED with red, green, and blue diodes.

Viewing Angle: 130 degrees
Peak Wavelength (Red): 626nm
Peak Wavelength (Green): 525nm
Peak Wavelength (Blue): 470nm
Voltage Rating (Red): 2.1V
Voltage Rating (Green): 3.5V
Voltage Rating (Blue): 3.5V
Maximum Current (Red): 300mA
Maximum Current (Green): 350mA
Maximum Current (Blue): 350mA
Package: Tape and reel
Standard Package: 300
