Same model may have multiple batches, images only for reference.

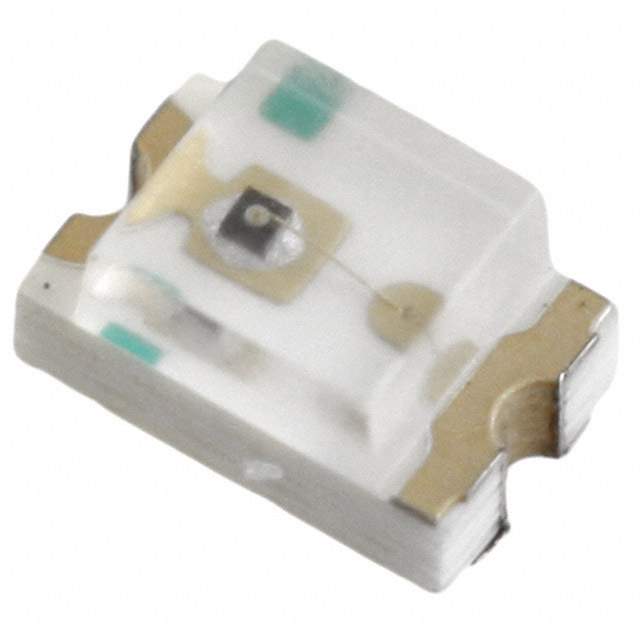

SML-LX0805USBC-TR Real Image
Same model may have multiple batches, images only for reference.

SML-LX0805USBC-TR

Part No SML-LX0805USBC-TR
Manufacturer Lumex Opto/Components Inc.
Catalog LED Indication - Discrete
Description LED BLUE CLEAR SMD / Blue LED Indication - Discrete 3.5V 0805 (2012 Metric)
Datasheet
SML-LX0805USBC-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Indication - Discrete
Mfr Lumex Opto/Components Inc.
Package Tape & Reel
Color Blue
Configuration Standard
Lens Color Colorless
Lens Transparency Clear
Millicandela Rating 25mcd
Lens Style Rectangle with Flat Top
Lens Size 1.40mm x 1.25mm
Voltage - Forward (Vf) (Typ) 3.5V
Current - Test 20mA
Viewing Angle 140°
Mounting SMD (SMT)
Wavelength - Peak 470nm
Package / Case 0805 (2012 Metric)
Dimension 2.00mm L x 1.25mm W
Base Product Number SML-LX0805
Other Names 67-1638-2R,67-1638-1R,Q2098556,67-1638-6,67-1638-1,67-1638-2,SMLLX0805USBCTR
Standard Package 3,000
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1241901-SML-LX0805USBC-TR
Ultra Librarian 3D Model Ultra Librarian SML-LX0805USBC-TR CAD Model

Description

The Lumex Opto/Components Inc. SML-LX0805USBC-TR is a blue LED indication component that has a viewing angle of 140° and a millicandela rating of 25mcd.

  • Viewing Angle: 140°
  • Millicandela Rating: 25mcd
  • Voltage-Forward: 3.5V
  • Current-Test: 20mA
  • Dimension: 2.00mm L x 1.25mm W
  • Lens Size: 1.40mm x 1.25mm
  • Package Type: Tape and reel
  • Mounting: SMD (SMT)
