Same model may have multiple batches, images only for reference.

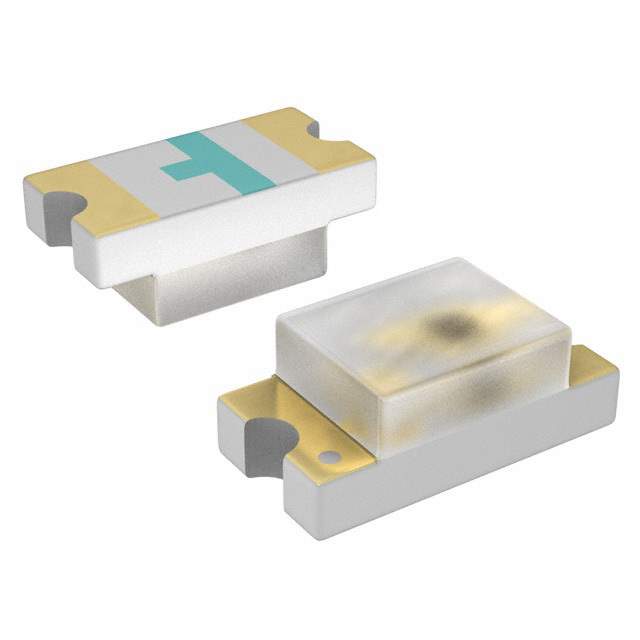

SML-LX0603SOW-TR Real Image
Same model may have multiple batches, images only for reference.

SML-LX0603SOW-TR

Part No SML-LX0603SOW-TR
Manufacturer Lumex Opto/Components Inc.
Catalog LED Indication - Discrete
Description LED ORANGE DIFFUSED SMD / Orange LED Indication - Discrete 2V 0603 (1608 Metric)
Datasheet
SML-LX0603SOW-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Indication - Discrete
Mfr Lumex Opto/Components Inc.
Package Tape & Reel
Color Orange
Configuration Standard
Lens Color White
Lens Transparency Diffused
Millicandela Rating 60mcd
Lens Style Rectangle with Flat Top
Lens Size 1.00mm x 0.80mm
Voltage - Forward (Vf) (Typ) 2V
Current - Test 20mA
Viewing Angle 140°
Mounting SMD (SMT)
Wavelength - Peak 610nm
Package / Case 0603 (1608 Metric)
Dimension 1.60mm L x 0.80mm W
Height (Max) 0.60mm
Base Product Number SML-LX0603
Other Names 67-1691-1,67-1691-2,67-1691-2R,67-1691-1R,67-1691-6,SMLLX0603SOWTR
Standard Package 4,000
MSL Level 2A (4 Weeks)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1241872-SML-LX0603SOW-TR
Ultra Librarian 3D Model Ultra Librarian SML-LX0603SOW-TR CAD Model

Description

The Lumex Opto/Components Inc. SML-LX0603SOW-TR is an orange LED indication component that is part of the optoelectronics category.

  • Lens: White diffused lens
  • Shape: Rectangular
  • Lens Style: Flat top
  • Lens Size: 1.00mm x 0.80mm
  • Viewing Angle: 140 degrees
  • Millicandela Rating: 60mcd
  • Forward Voltage: 2V
  • Test Current: 20mA
  • Wavelength Peak: 610nm
  • Package: Tape and reel with a standard package of 4,000
  • Configuration: Standard
  • Mounting Type: SMD (SMT)
  • Dimension: 1.60mm L x 0.80mm W
  • Height: 0.60mm (Maximum)
  • ECCN: EAR99
  • REACH: REACH unaffected
  • Perfect for: Use in various electronic applications
