Same model may have multiple batches, images only for reference.

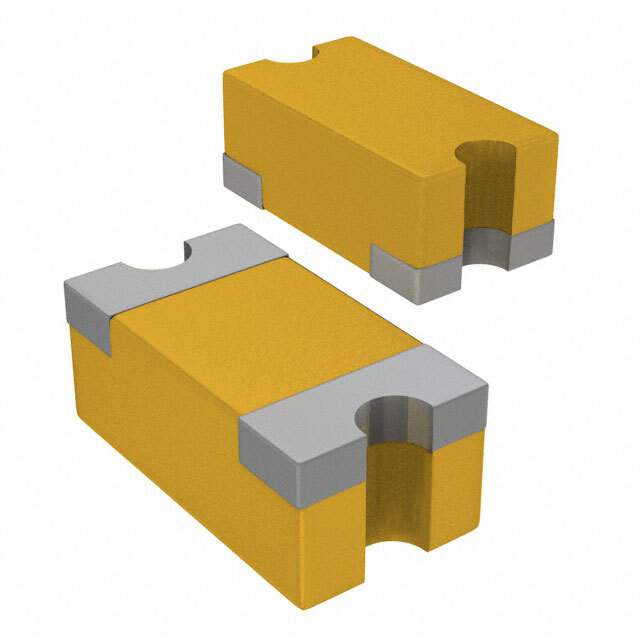

XGD10603NR Real Image
Same model may have multiple batches, images only for reference.

XGD10603NR

Part No XGD10603NR
Manufacturer Littelfuse Inc.
Catalog TVS - Diodes
Description TVS DIODE 32V 40V 0603 / Surface Mount Polymeric Electrostatic Discharge Suppressors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Littelfuse Inc.
Packaging Reel
Type Zener
Bidirectional Channels 1
Voltage - Reverse Standoff (Typ) 32V (Maximum)
Voltage - Breakdown (Min) 400V
Voltage - Clamping (Maximum) at Ipp 40V
Power Line Protection No
Applications Use For General
Mounting Style SMD
Manufacturer Package 0603
Supplier Device Package 0603
Manufacturer Pack Quantity 5,000
MSL Level 1 (Unlimited)
Popularity High
Supply and Demand Status Sufficient
Win Source Part Number 801780-XGD10603NR
Ultra Librarian 3D Model Ultra Librarian XGD10603NR CAD Model

Description

The Littelfuse Inc. 801780-XGD10603NR is a Zener-type diode designed for general use.

  • Type: Zener
  • Channel: Bidirectional
  • Maximum Reverse Standoff Voltage: 32V
  • Minimum Breakdown Voltage: 400V
  • Package: 0603
  • Power Line Protection: No
  • Power Peak Pulse: No
  • Manufacturer Pack Quantity: 5,000
  • MSL Level: 1 (unlimited)
  • Voltage Clamping Maximum @ Ipp: 40V
