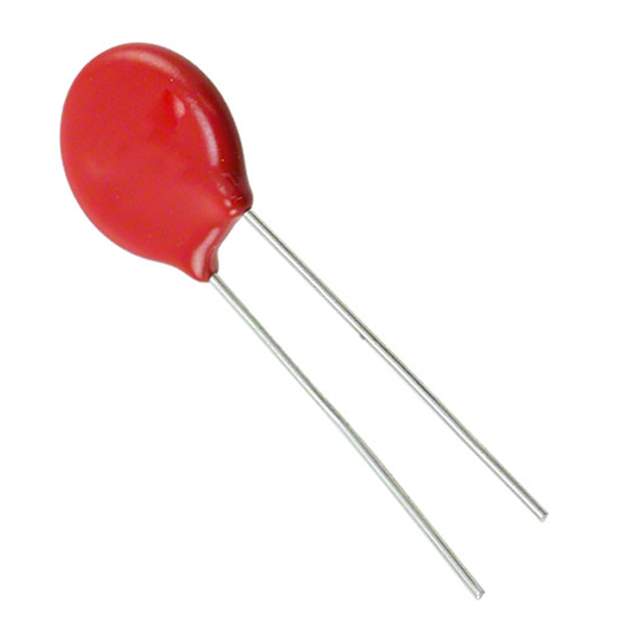

The V100ZA15P is a Varistor from Littelfuse Inc., designed to protect sensitive electronic equipment against voltage transients induced by lightning, inductive load switching, and electrostatic discharge (ESD). It is part of the ZA series, known for their high surge current handling capabilities and reliability.

Applications:

• Power supplies
• Surge protection devices (SPDs)
• Consumer electronics
• Industrial equipment
• Telecommunications equipment

Features:

• High surge current capability
• Fast response time
• Low clamping voltage
• Bidirectional protection
• RoHS compliant

Benefits:

• Protects sensitive electronics from damaging voltage surges
• Extends the lifespan of electronic equipment
• Improves system reliability
• Reduces downtime and repair costs
• Meets environmental regulations

Technical Specifications:

The V100ZA15P has a maximum continuous operating voltage of 100V AC. Its clamping voltage, the voltage at which the varistor starts conducting significantly, is typically around 240V at a specific test current (e.g., 5A). The surge current capability is a key parameter, and the V100ZA15P can withstand high surge currents, such as several thousand amps for a short duration (e.g., 8/20µs waveform). The response time of the varistor is very fast, typically in the nanosecond range, enabling it to quickly suppress transient voltages. It is designed for bidirectional protection, meaning it can protect against positive and negative voltage surges. The device package and construction are designed to provide reliable performance and long life. The actual surge current rating depends on the specific pulse waveform and duration.

Varistors, or Voltage Dependent Resistors (VDRs), are nonlinear resistors whose resistance varies depending on the applied voltage. At normal operating voltages, the varistor exhibits a high resistance, effectively acting as an open circuit. When a voltage surge occurs, the varistor's resistance rapidly decreases, diverting the excess current away from the protected circuitry. The ZA series from Littelfuse is specifically designed for applications requiring robust surge protection, making the V100ZA15P an excellent choice for safeguarding sensitive electronics.

The robust construction and reliable performance of the V100ZA15P make it a suitable component in various surge protection applications, thus protecting valuable electronic equipment.
