Same model may have multiple batches, images only for reference.

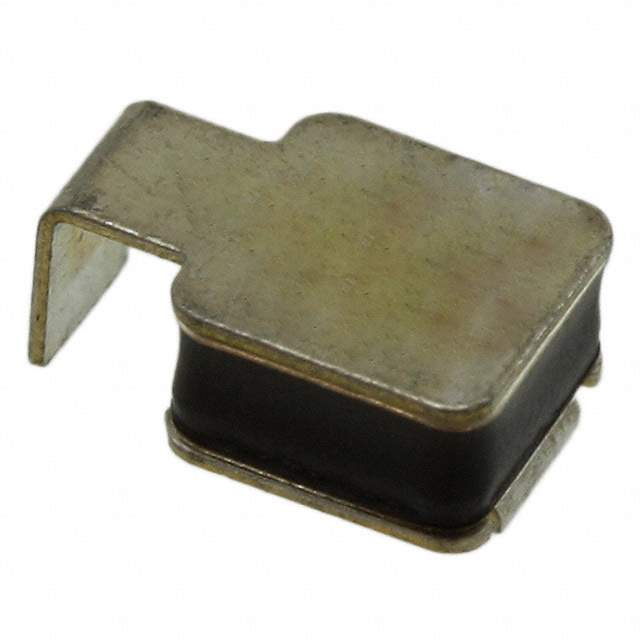

TSL250-080F-2 Real Image
Same model may have multiple batches, images only for reference.

TSL250-080F-2

Part No TSL250-080F-2
Manufacturer Littelfuse Inc.
Catalog PTC Resettable Fuses
Description POLYSWITCH PTC RESET 0.08A SMD
Datasheet
TSL250-080F-2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Packaging Reel - TR
Status Active
Type Polymeric
Voltage - Max 80V (250V Int)
Current - Max 3A
Current - Hold (Ih) (Max) 80mA
Current - Trip (It) 240mA
Time to Trip 800ms
Resistance - Initial (Ri) (Min) 5 Ohm
Resistance - Post Trip (R1) (Max) 20 Ohm
Temperature Range - Operating -40°C to 85°C
Mounting SMD (SMT)
Dimension 0.287" L x 0.199" W (7.30mm x 5.05mm)
Thickness (Max) 0.146" (3.70mm)
Approvals CSA, TUV, UL
Win Source Part Number 1114670-TSL250-080F-2
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian TSL250-080F-2 CAD Model

Description

The Littelfuse TSL250-080F-2 is a polymeric circuit protection component that is designed for surface-mount device (SMD) applications.

  • Maximum Voltage Rating: 80V (250V Int)
  • Maximum Current Rating: 3A
  • Thickness (max): 0.146" (3.70mm)
  • Dimensions: 0.287" L x 0.199" W (7.30mm x 5.05mm)
  • Resistance - Initial (Ri) (Min): 5 Ohm
  • Resistance - Post Trip (R1) (Max): 20 Ohm
  • Current - Hold (Ih) (Max): 80mA
  • Current - Trip (It): 240mA
  • Time to Trip: 800ms
  • Popularity Rating: medium
  • Approvals: CSA, TUV, and UL
