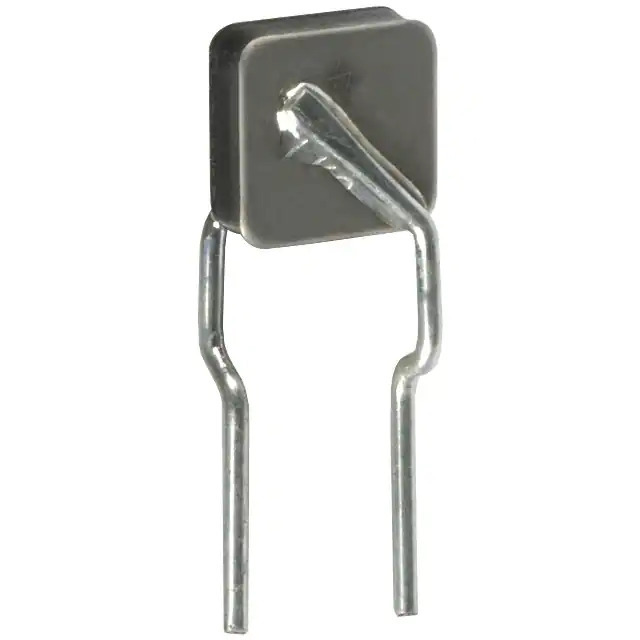

Same model may have multiple batches, images only for reference.

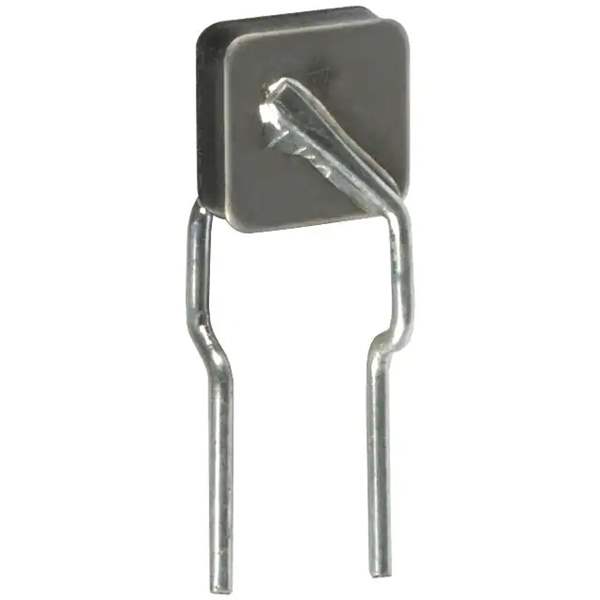

TRF250-120U

Name: TRF250-120U
Brand: Littelfuse Inc.
SKU: 1361723
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	TRF250-120U
Manufacturer	Littelfuse Inc.
Catalog	PTC Resettable Fuses
Description	PTC RESET FUSE 60V 120MA RADIAL / Polymeric PTC Resettable Fuse 60V (250V Int) 120 mA Ih Through Hole Radial, Disc
Datasheet	TRF250-120U Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Circuit Protection - PTC Resettable Fuses
Mfr	Littelfuse Inc.
Series	PolySwitch®, TRF250
Package	Bag
Product Status	Active
Type	Polymeric
Voltage - Max	60V (250V Int)
Current - Hold (Ih) (Max)	120 mA
Current - Trip (It)	240 mA
Current - Max	3 A
Time to Trip	1 s
Resistance - Initial (Ri) (Min)	6 Ohms
Resistance - Post Trip (R1) (Max)	16 Ohms
Temperature Range - Operating	-40°C ~ 85°C
Ratings	-
Mounting Type	Through Hole
Package / Case	Radial, Disc
Size / Dimension	0.236" L x 0.150" W (6.00mm x 3.80mm)
Height - Seated (Max)	0.394" (10.00mm)
Thickness (Max)	-
Lead Spacing	0.197" (5.00mm)
Approval Agency	CSA, TUV, UL
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8533.40.8070
California Prop 65	Warning Information
Win Source Part Number	1361723-TRF250-120U
Ultra Librarian 3D Model	Ultra Librarian TRF250-120U CAD Model

Alternative Products

Description

The TRF250-120U is a polymeric PTC resettable fuse from the PolySwitch® TRF250 series, manufactured by Littelfuse Inc.

Temperature Range: -40°C to 85°C
Maximum Current Rating: 3A
Voltage Rating: 60V (250V Int)
Trip Current: 240mA
Time to Trip: 1 second
Initial Resistance: 6 Ohms
Post-Trip Resistance: 16 Ohms
Package: Radial, disc
Mounting Type: Through Hole
Approvals: CSA, TUV, and UL
Product Status: Active
