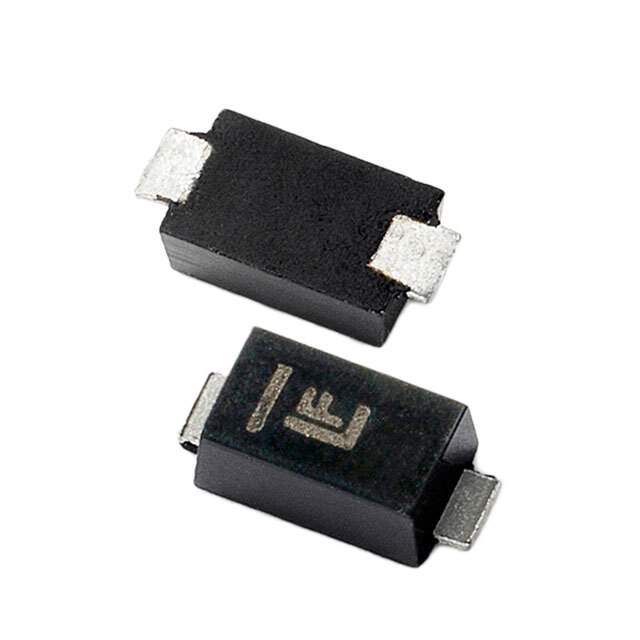

Same model may have multiple batches, images only for reference.

TPSMF4L60A

Name: TPSMF4L60A
Brand: Littelfuse Inc.
SKU: 937504
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	TPSMF4L60A
Manufacturer	Littelfuse Inc.
Catalog	TVS - Diodes
Description	TVS DIODE 60VWM 96.8VC SOD123FL
Datasheet	TPSMF4L60A Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Circuit Protection
Estimated Pruduction Lead Time	48 Weeks
Features	96.8V Clamp 4.1A Ipp Tvs Diode Surface Mount SOD-123F
Manufacturer	Littelfuse Inc.
Series	Automotive, AEC-Q101, TPSMF4L
Package	Reel - TR
Operating Temperature Range	-55°C ~ 150°C (TJ)
Mounting	Surface Mount
Package	SOD-123F
Case / Package	SOD-123F
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8541.10.0080
Other Part Number	F7554TR, F7554DKR, F7554CT, -TPSMF4L60A
Quantity per package	3000
Popularity	High
Supply and Demand Status	Balance
Win Source Part Number	937504-TPSMF4L60A
Ultra Librarian 3D Model	Ultra Librarian TPSMF4L60A CAD Model

Alternative Products

Description

The TPSMF4L60A is a surface mount TVS diode from Littelfuse Inc. with a clamp voltage of 96.8V and a peak pulse current of 4.1A.

Series: TPSMF4L series
Compliance: AEC-Q101 compliant
Operating Temperature Range: -55°C to 150°C
Application: circuit protection
Package: SOD-123F package
Packaging: reel package with 3000 units per package
Estimated Production Lead Time: 48 weeks
Classification: HTSUS 8541.10.0080
Application: circuit protection applications
