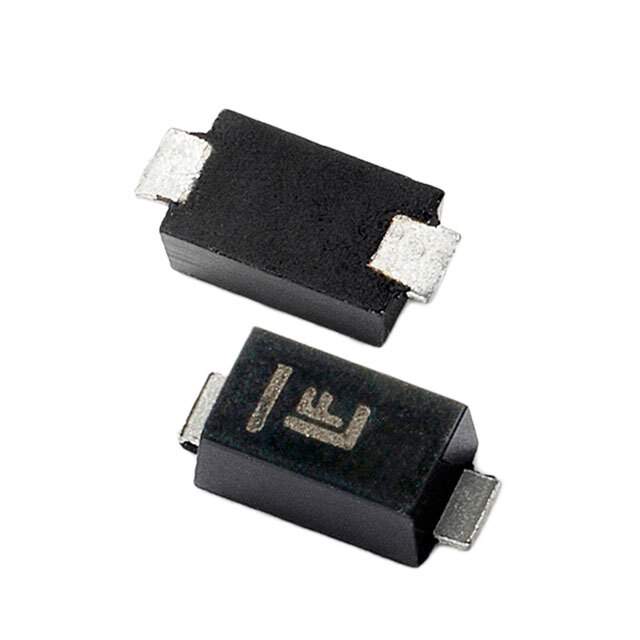

Same model may have multiple batches, images only for reference.

TPSMF4L12A

Name: TPSMF4L12A
Brand: Littelfuse Inc.
SKU: 803432
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	TPSMF4L12A
Manufacturer	Littelfuse Inc.
Catalog	TVS - Diodes
Description	TVS DIODE 12V 19.9V SOD123FL / The TPSMF4L series of SOD-123FL small and flat lead low-profile plastic package is designed specifically to protect sensitive electronic equipment from voltage
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Manufacturer	Littelfuse Inc.
Packaging	Reel
Type	Zener
Unidirectional Channels	1
Voltage - Reverse Standoff (Typ)	12V
Voltage - Breakdown (Min)	13.3V
Voltage - Clamping (Maximum) at Ipp	19.9V
Current - Peak Pulse (10/1000μs)	20.1A
Power - Peak Pulse	400W
Power Line Protection	No
Applications	Automotive
Temperature Range - Operating	-55°C ~ 150°C
Mounting Style	SMD
Manufacturer Package	SOD-123F
Supplier Device Package	SOD-123FL
Manufacturer Pack Quantity	3,000
MSL Level	1 (Unlimited)
Popularity	Medium
Supply and Demand Status	Balance
Win Source Part Number	803432-TPSMF4L12A
Ultra Librarian 3D Model	Ultra Librarian TPSMF4L12A CAD Model
