Same model may have multiple batches, images only for reference.

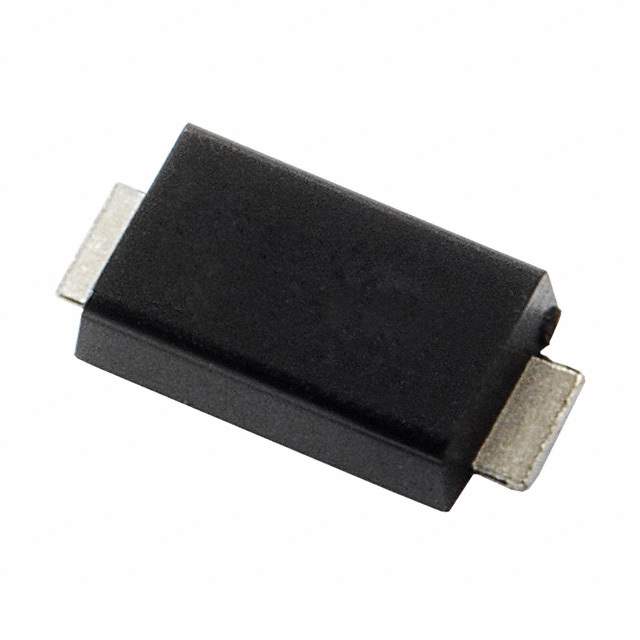

TPSMA6L18A Real Image
Same model may have multiple batches, images only for reference.

TPSMA6L18A

Part No TPSMA6L18A
Manufacturer Littelfuse Inc.
Catalog TVS - Diodes
Description TVS DIODE 18V 29.2V DO221AC / Transient Voltage Suppression Diodes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Littelfuse Inc.
Packaging Reel
Type Zener
Unidirectional Channels 1
Voltage - Reverse Standoff (Typ) 18V
Voltage - Breakdown (Min) 20V
Voltage - Clamping (Maximum) at Ipp 29.2V
Current - Peak Pulse (10/1000μs) 20.6A
Power - Peak Pulse 600W
Power Line Protection No
Applications Automotive
Temperature Range - Operating -50°C ~ 150°C
Mounting Style SMD
Manufacturer Package DO-221AC, SMA Flat Leads
Supplier Device Package DO-221AC
Manufacturer Pack Quantity 3,000
MSL Level 1 (Unlimited)
Popularity High
Supply and Demand Status Balance
Win Source Part Number 802848-TPSMA6L18A
Ultra Librarian 3D Model Ultra Librarian TPSMA6L18A CAD Model

Description

The Littelfuse Inc. TPSMA6L18A is a unidirectional zener diode with a voltage rating of 18V and a breakdown voltage of 20V.

  • Peak Pulse Current: 20.6A
  • Peak Power: 600W
  • Applications: Automotive
  • Package: SMD
  • Supplier Device Package: DO-221AC, SMA Flat Leads
  • Supply and Demand Status: Balanced
