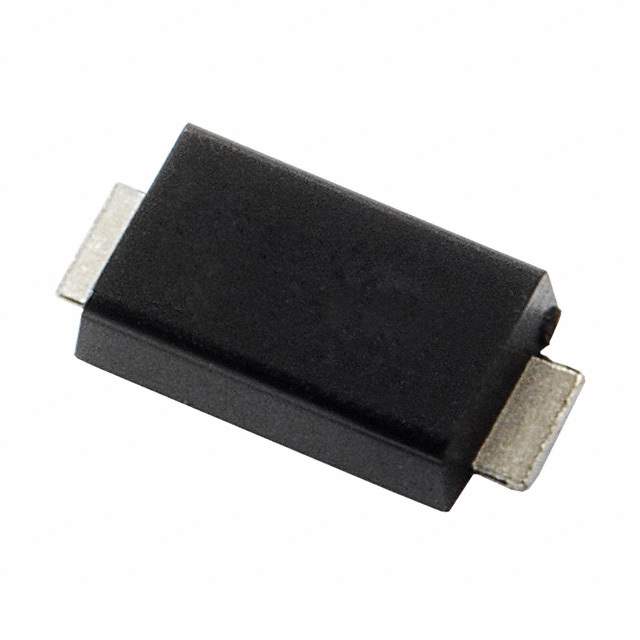

The Littelfuse Inc. electronic component (product) with Win Source Part Number 1204549-TPSMA6L10A is a TVS-diode with a Zener type. It belongs to the Automotive, AEC-Q101, TPSMA6L series and has a DO-221AC, SMA Flat Leads package/case.

• Series: Automotive, AEC-Q101, TPSMA6L
• Package/Case: DO-221AC, SMA Flat Leads
• Application: Automotive
• Standard Package: 3,000
• Mounting Type: SMD (SMT)
• Channels: Unidirectional, One
• Voltage-Reverse Standoff (Typ): 10V
• Voltage Breakdown (Min): 11.1V
• Voltage Clamping (Max) @ Ipp: 17V
• Power-Peak Pulse: 600W
• Power Line Protection: Not Available
• Capacitance @ Frequency: Not Specified
• Current-Peak Pulse (10/1000µs): 35.3A
• Supplier Device Package: DO-221AC
• Temperature Range: -50°C to 150°C (TJ)
• MSL Level: 1 (Unlimited)
• HTSUS: 8541.10.0080
• Also Known As: F6149TR, F6149DKR, F6149CT, -TPSMA6L10A
