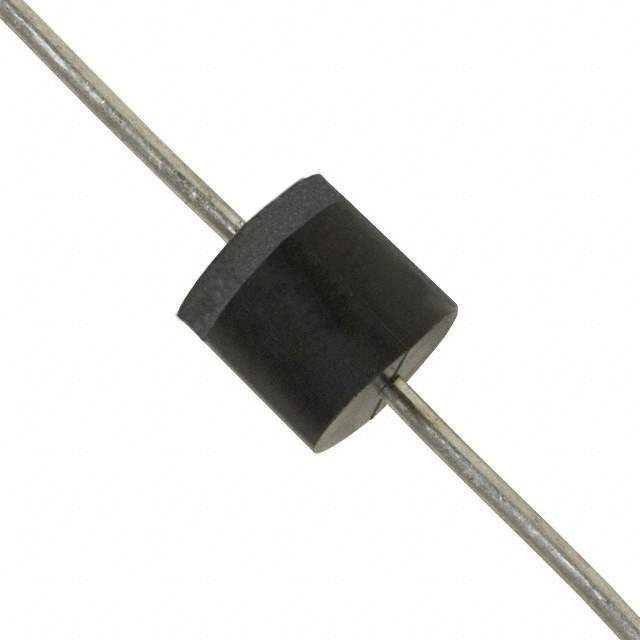

Same model may have multiple batches, images only for reference.

TP5KP30A

Name: TP5KP30A
Brand: Littelfuse Inc.
SKU: 1100717
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	TP5KP30A
Manufacturer	Littelfuse Inc.
Catalog	TVS - Diodes
Description	TVS DIODE 30VWM 48.4VC P600 / 48.4V Clamp 105.4A Ipp Tvs Diode Through Hole P600
Datasheet	TP5KP30A Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Circuit Protection>TVS - Diodes
Mfr	Littelfuse Inc.
Series	Automotive, AEC-Q101, TP5KP
Package	Tape & Reel (TR),Cut Tape (CT)
Type	Zener
Unidirectional Channels	1
Voltage - Reverse Standoff (Typ)	30V
Voltage - Breakdown (Min)	33.3V
Voltage - Clamping (Max) @ Ipp	48.4V
Current - Peak Pulse (10/1000µs)	105.4A
Power - Peak Pulse	5000W (5kW)
Power Line Protection	No
Applications	Automotive
Temperature Range - Operating	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Package / Case	P600, Axial
Supplier Device Package	P600
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8541.10.0080
Other Names	-TP5KP30A,F7621CT,F7621TR
Standard Package	800
Win Source Part Number	1100717-TP5KP30A
Ultra Librarian 3D Model	Ultra Librarian TP5KP30A CAD Model

Alternative Products

Description

The Littelfuse Inc. 1100717-TP5KP30A is a TVS diode that is used for circuit protection.

Series: Automotive, AEC-Q101, and TP5KP
Channel Type: Unidirectional Zener Diode
Voltage Reverse Standoff: 30V
Voltage Breakdown: 33.3V
Voltage Clamping @ Ipp: 48.4V
Power Peak Pulse: 5000W (5kW)
Mounting Type: Through Hole
Package: Tape & Reel (TR) and Cut Tape (CT)
Standard Package: 800
ECCN: EAR99
MSL Level: 1 (Unlimited)
HTSUS: 8541.10.0080
Other Part Numbers: -TP5KP30A, F7621CT, F7621TR
