Same model may have multiple batches, images only for reference.

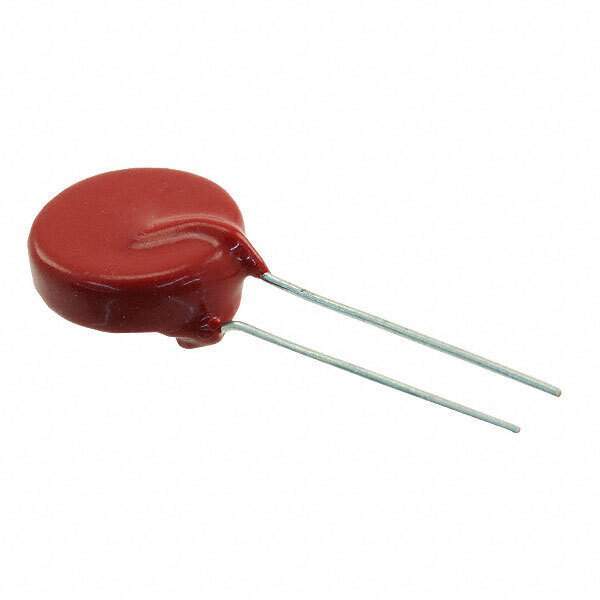

TMOV20RP250E Real Image
Same model may have multiple batches, images only for reference.

TMOV20RP250E

Part No TMOV20RP250E
Manufacturer Littelfuse Inc.
Catalog TVS - Varistors, MOVs
Description VARISTOR 390V 10KA DISC 20MM / 390 V 10 kA Varistor 1 Circuit Through Hole Disc 20mm
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>TVS - Varistors, MOVs
Mfr Littelfuse Inc.
Series TMOV®
Package Bulk
Maximum AC Volts 250 V
Maximum DC Volts 320 V
Varistor Voltage (Min) 351 V
Varistor Voltage (Typ) 390 V
Varistor Voltage (Max) 429 V
Current - Surge 10 kA
Energy 170J
Number of Circuits 1
Capacitance @ Frequency 1000 pF @ 1 MHz
Temperature Range - Operating -55°C ~ 85°C (TA)
Features Thermally Protected
Mounting Type Through Hole
Package / Case Disc 20mm
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.40.4000
Other Names TMOV20R250EP,TMOV20R250EP-ND,TMOV20RP250E-ND,F4040,-1024-TMOV20RP250E
Standard Package 400
Win Source Part Number 980270-TMOV20RP250E
Ultra Librarian 3D Model Ultra Librarian TMOV20RP250E CAD Model

Description

The Littelfuse Inc. 980270-TMOV20RP250E is a thermally protected TVS-Varistor with a maximum AC voltage of 250 V and a maximum DC voltage of 320 V.

  • Capacitance: 1000 pF @ 1 MHz
  • Varistor Voltage (Min): 351 V
  • Varistor Voltage (Typ): 390 V
  • Varistor Voltage (Max): 429 V
  • Energy: 170J
  • Surge Current: 10 kA
  • Mounting: through hole
  • Package/Case: Disc 20mm
  • Temperature Range: -55°C to 85°C (TA)
  • Category: Circuit Protection>TVS - Varistors, MOVs
  • Series: TMOV®
