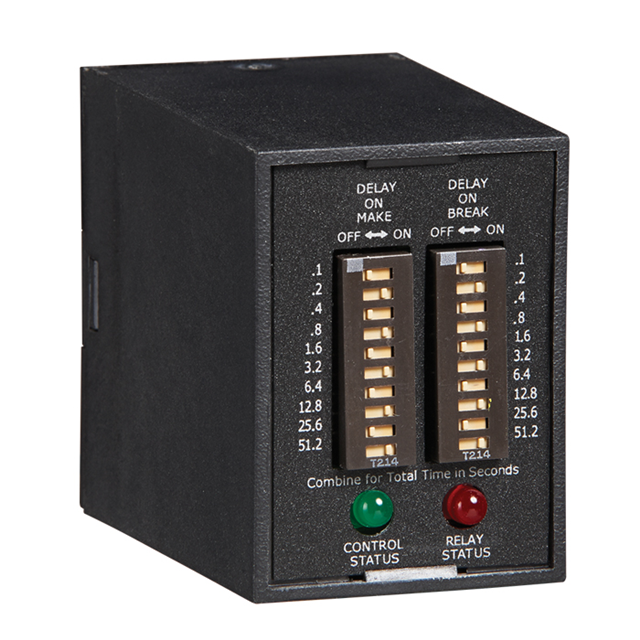

TDMB413D Real Image
Same model may have multiple batches, images only for reference.

TDMB413D

Part No TDMB413D
Manufacturer Littelfuse Inc.
Catalog Time Delay Relays
Description RELAY TIME DEL 10230SEC 10A 120V / Off-Delay, On-Delay Time Delay Relay DPDT (2 Form C) 10 Sec ~ 10230 Sec Delay 10A @ 120/240VAC Socketable
Datasheet
TDMB413D Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Industrial Automation and Controls>Time Delay Relays
Mfr Littelfuse Inc.
Series TDMB
Package Bulk
Mounting Type Socketable
Relay Type Mechanical Relay
Function Off-Delay, On-Delay
Circuit DPDT (2 Form C)
Delay Time 10 Sec ~ 10230 Sec
Contact Rating @ Voltage 10A @ 120/240VAC
Voltage - Supply 120VAC
Termination Style Plug In, 11 Pin (Octal)
Timing Adjustment Method DIP Switches
Timing Initiate Method Input Voltage, Trigger Signal
MSL Level Not Applicable
ECCN EAR99
HTSUS 9107.00.8000
Other Names -1024-TDMB413D
Standard Package 1
Win Source Part Number 1099008-TDMB413D
Ultra Librarian 3D Model Ultra Librarian TDMB413D CAD Model

Description

The TDMB series time delay relay is an industrial automation and controls component that comes with an off-delay and on-delay function.

  • Function: Off-delay and on-delay
  • Circuit: DPDT
  • Relay Type: Mechanical
  • Termination Style: Plug-in, 11-pin
  • Contact Rating: 10A @ 120/240VAC
  • Delay Time: 10 seconds to 10230 seconds
  • Timing Adjustment Method: DIP switches
  • Timing Initiate Method: Input voltage or trigger signal
  • Voltage Supply: 120VAC
  • Mounting: Socketable
