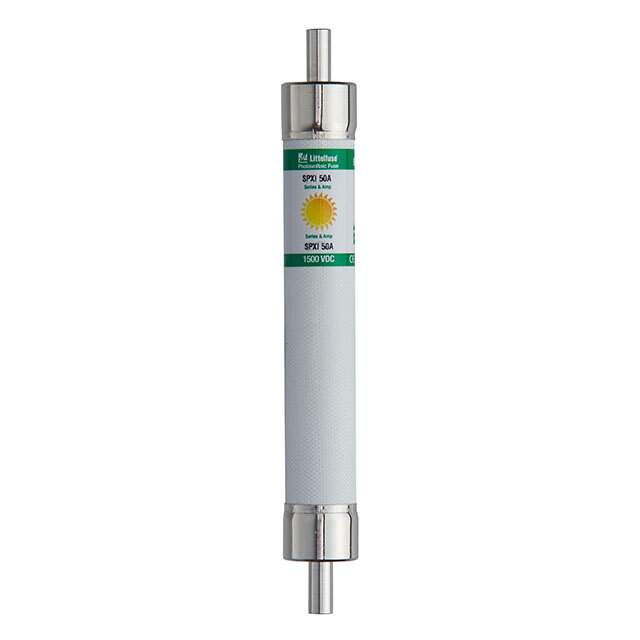

SPXI020.L Real Image
Same model may have multiple batches, images only for reference.

SPXI020.L

Part No SPXI020.L
Manufacturer Littelfuse Inc.
Catalog Electrical, Specialty Fuses
Description FUSE CRTRDGE 20A 1.5KVDC INLINE
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Littelfuse Inc.
Packaging Bulk
Fuse Type Cartridge
Current Rating (Amps) 20A
Voltage Rating - DC 1.5kV
Applications Solar (Photovoltaic)
Features Intrinsically Safe
Breaking Capacity at Rated Voltage 15kA
Mounting Style In Line
Manufacturer Package Cartridge, Inline, Double Ended
Dimension 0.406" Dia x 3.475" L (10.31mm x 88.27mm)
Melting I2t 701
DC Cold Resistance 0.0085 Ohms
Manufacturer Pack Quantity 50
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 808535-SPXI020.L
Ultra Librarian 3D Model Ultra Librarian SPXI020.L CAD Model

Description

The Littelfuse Inc. SPXI020.L is an intrinsically safe cartridge fuse with a voltage rating - DC of 1.5kV and a current rating (amps) of 20A.

  • Voltage Rating - DC: 1.5kV
  • Current Rating (amps): 20A
  • Breaking Capacity at Rated Voltage: 15kA
  • DC Cold Resistance: 0.0085 Ohms
  • Melting I2t: 701
  • Dimension: 0.406" Dia x 3.475" L (10.31mm x 88.27mm)
  • Manufacturer Package: Cartridge, inline, double-ended
  • Manufacturer Pack Quantity: 50
