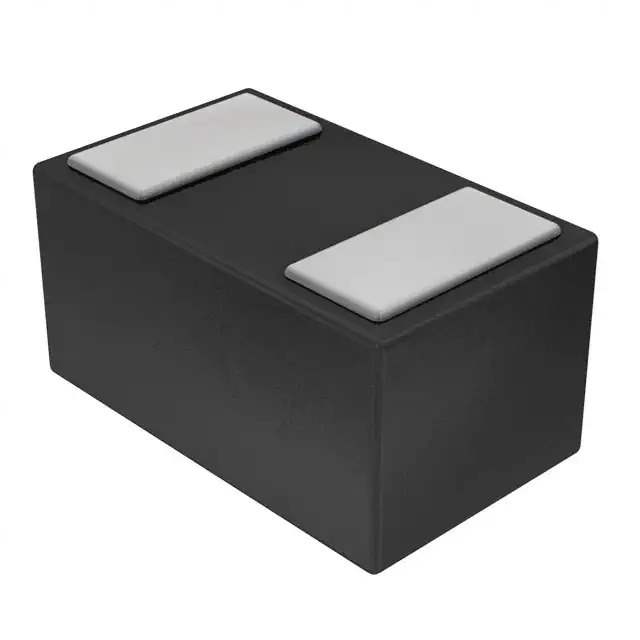

Same model may have multiple batches, images only for reference.

SPHV24-01ETG

Name: SPHV24-01ETG
Brand: Littelfuse Inc.
SKU: 853046
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	SPHV24-01ETG
Manufacturer	Littelfuse Inc.
Catalog	TVS - Diodes
Description	TVS DIODE 24VWM 50VC SOD882
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Circuit Protection - Transient Voltage Suppressors (TVS) - TVS Diodes
Mfr	Littelfuse Inc.
Series	Automotive, AEC-Q101, SPHV, SPA®
Package	Tape & Reel
Product Status	Active
Type	Zener
Unidirectional Channels	1
Voltage - Reverse Standoff (Typ)	24V (Max)
Voltage - Breakdown (Min)	26.7V
Voltage - Clamping (Max) @ Ipp	50V
Current - Peak Pulse (10/1000µs)	3A (8/20µs)
Power - Peak Pulse	200W
Power Line Protection	No
Applications	Automotive
Capacitance @ Frequency	32pF @ 1MHz
Temperature Range - Operating	-40°C ~ 125°C (TJ)
Mounting Type	Surface Mount
Package / Case	SOD-882
Supplier Device Package	SOD-882
Standard Package	10,000 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.10.0080
California Prop 65	Warning Information
Win Source Part Number	853046-SPHV24-01ETG
Ultra Librarian 3D Model	Ultra Librarian SPHV24-01ETG CAD Model

Alternative Products

Description

The SPHV24-01ETG is a Zener type TVS diode specifically designed for automotive applications from Littelfuse Inc.

Series: SPHV
AEC-Q101 Qualified: Yes
Package: Surface mount (SOD-882)
Reverse Standoff Voltage (Maximum): 24V
Minimum Breakdown Voltage: 26.7V
Clamping Voltage @ Peak Pulse Current (Ipp): 50V
Power Peak Pulse: 200W
Channel: Unidirectional
Application: Protecting automotive electronic systems
Standard Package: 10,000 pcs
Operating Temperature Range: -40°C to 125°C
