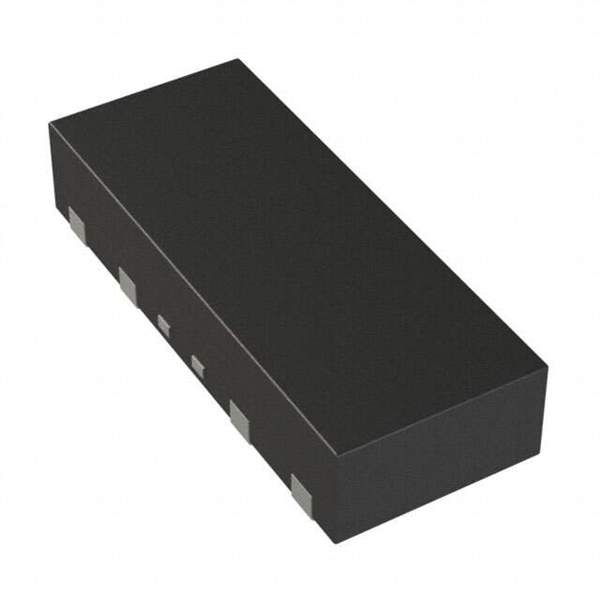

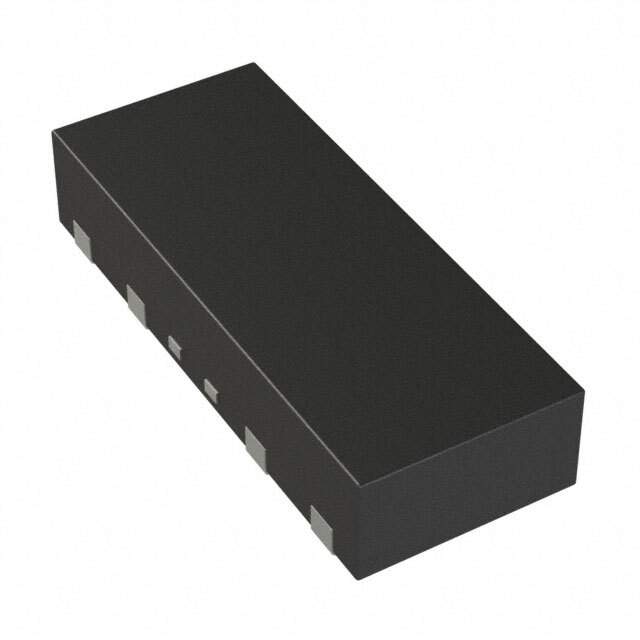

Same model may have multiple batches, images only for reference.

SP3420-04UTG

Name: SP3420-04UTG
Brand: Littelfuse Inc.
SKU: 1140704
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	SP3420-04UTG
Manufacturer	Littelfuse Inc.
Catalog	TVS - Diodes
Description	TVS DIODE 3.3VWM 6VC 10UDFN / 6V Clamp 6A (8/20µs) Ipp Tvs Diode Surface Mount 10-µDFN (2.5x1.0)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Circuit Protection>TVS - Diodes
Mfr	Littelfuse Inc.
Series	Automotive, AEC-Q101
Package	Tape & Reel
Type	Zener
Unidirectional Channels	4
Voltage - Reverse Standoff (Typ)	3.3V (Max)
Voltage - Breakdown (Min)	6.5V
Voltage - Clamping (Max) @ Ipp	6V
Current - Peak Pulse (10/1000µs)	6A (8/20µs)
Power Line Protection	No
Applications	General Purpose
Capacitance @ Frequency	0.32pF @ 1MHz
Temperature Range - Operating	-40°C ~ 125°C (TA)
Mounting	SMD (SMT)
Package / Case	10-UFDFN
Supplier Device Package	10-µDFN (2.5x1.0)
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8541.10.0080
Other Names	18-SP3420-04UTGCT,18-SP3420-04UTGTR,-1024-SP3420-04UTGCT,18-SP3420-04UTGDKR
Standard Package	3,000
Win Source Part Number	1140704-SP3420-04UTG
Ultra Librarian 3D Model	Ultra Librarian SP3420-04UTG CAD Model

Alternative Products

Description

The Littelfuse SP3420-04UTG TVS diode is a unidirectional zener type diode with 4 channels. It has a voltage rating of 6.5V and a voltage clamping of 6V @ Ipp. The diode has a peak pulse current of 6A (8/20µs) and comes in a 10-µDFN (2.5x1.0) package. It is RoHS compliant and has limited supply and demand status.
