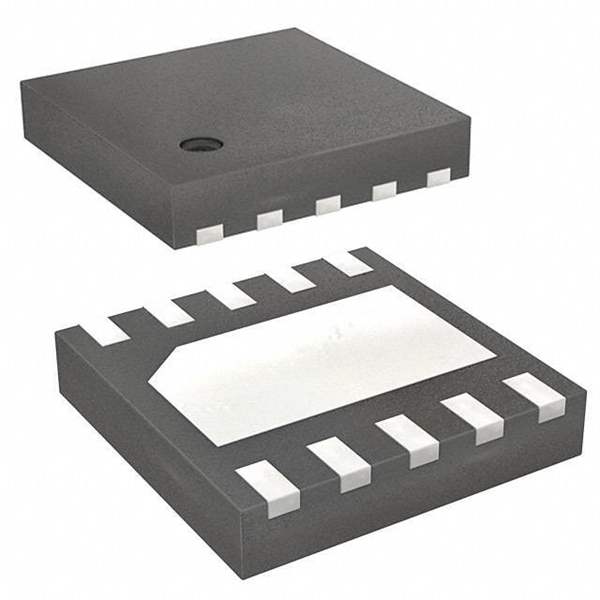

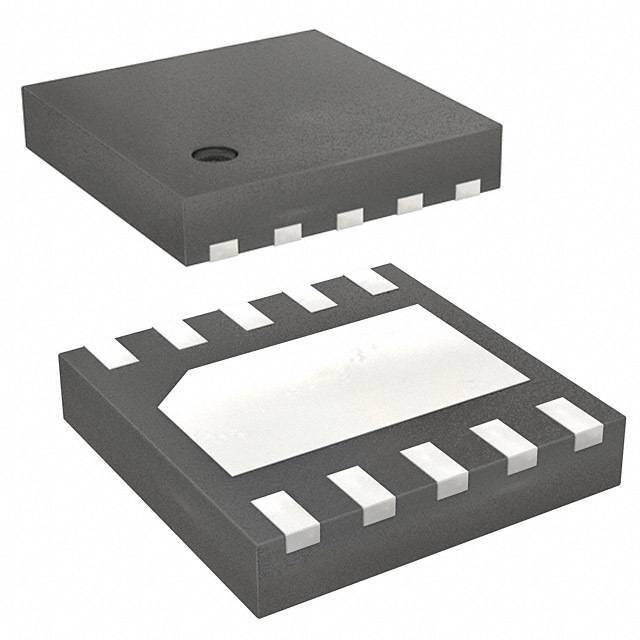

SP3304NUTG Littelfuse Inc.
Same model may have multiple batches, images only for reference.

SP3304NUTG

Part No SP3304NUTG
Manufacturer Littelfuse Inc.
Catalog TVS - Diodes
Description ESD Suppressor Diode Diode Array Uni-Dir 3.3V 10-Pin UDFN EP T/R / TVS DIODE 3.3VWM 11.5VC UDFN10
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Packaging Reel - TR
Status Active
Type Steering (Rail to Rail)
Unidirectional Channels 4
STAND-OFF Voltage (Vwm) 3.3V (Max)
Max Clamping Voltage 11.5V
Peak Pulse Current(Ippm) 20A (8/20μs)
Power Dissipation - Pd 300W
Power Line Protection Yes
Applications Ethernet
Temperature Range - Operating -40°C to 125°C (TJ)
Mounting SMD (SMT)
Case / Package 10-uDFN (2.6x2.6)
Win Source Part Number 030647-SP3304NUTG
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Family Name SP3304N
Introduction Date August 13, 2012
ECCN EAR99
Country of Origin Thailand
Halogen Free Compliant
Estimated EOL Date 2025
Ultra Librarian 3D Model Ultra Librarian SP3304NUTG CAD Model

Description

The Littelfuse Inc. SP3304NUTG is a steering (rail to rail) circuit protection device from Littelfuse Inc.

  • Application: Ethernet applications
  • Mounting: SMD (SMT) technology
  • Channels: Four unidirectional channels
  • Protection: Power line protection
  • Family Name: SP3304N
  • Case/Package Size: 10-uDFN (2.6x2.6)
  • Stand-Off Voltage: 3.3V (max)
  • Maximum Clamping Voltage: 11.5V
  • Peak Pulse Current: 20A (8/20μs)
  • Power Dissipation: 300W
  • Commonly Used: Ethernet switches, routers, and other applications that require high-speed data communication
