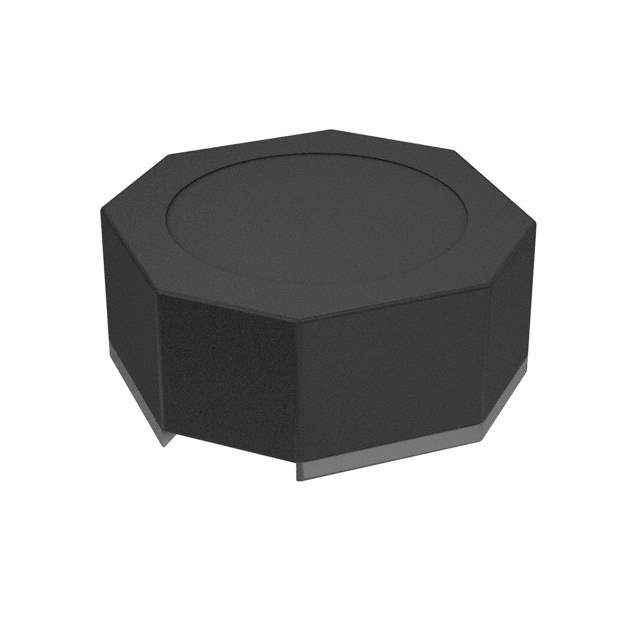

74402800047 Real Image
Same model may have multiple batches, images only for reference.

74402800047

Part No 74402800047
Manufacturer Wurth Electronics Inc
Catalog Fixed Inductors
Description FIXED IND 470NH 2.5A 42 MOHM SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Wurth Electronics Inc
Series WE-TPC
Package Tape & Reel
Product Status Active
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 470 nH
Tolerance ±35%
Current Rating (Amps) 2.5 A
Current - Saturation (Isat) 2A
Shielding Shielded
DC Resistance (DCR) 42mOhm Max
Frequency - Self Resonant 350MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Supplier Device Package 2828
Size / Dimension 0.110" L x 0.110" W (2.80mm x 2.80mm)
Height - Seated (Max) 0.047" (1.20mm)
Standard Package 1,500 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 857201-74402800047
Ultra Librarian 3D Model Ultra Librarian 74402800047 CAD Model

Description

The 857201-74402800047 is a fixed inductor from the WE-TPC series by Wurth Electronics Inc.

  • Design: Drum Core, Wirewound
  • Shielded: Yes
  • Size: 0.110" L x 0.110" W (2.80mm x 2.80mm)
  • Inductance: 470 nH
  • Maximum Seated Height: 0.047" (1.20mm)
  • Tolerance: ±35%
  • DC Resistance (DCR): 42mOhm Max
  • Operating Temperature Range: -40°C to 125°C
  • Current Rating: 2.5 A
  • Saturation Current (Isat): 2A
  • Mounting: Surface Mount
  • Package: Nonstandard
