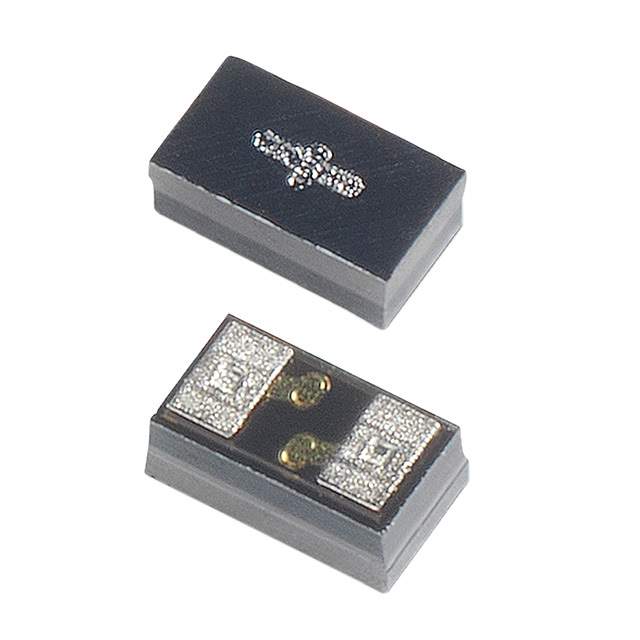

SP3042-01WTG Real Image
Same model may have multiple batches, images only for reference.

SP3042-01WTG

Part No SP3042-01WTG
Manufacturer Littelfuse Inc.
Catalog TVS - Diodes
Description TVS DIODE 5.3VWM 12.5VC 01005 / 12.5V (Typ) Clamp 2A (8/20µs) Ipp Tvs Diode Surface Mount 01005, Flip Chip
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>TVS - Diodes
Mfr Littelfuse Inc.
Series SP3042, SPA®
Package Tape & Reel
Type Zener
Bidirectional Channels 1
Voltage - Reverse Standoff (Typ) 5.3V (Max)
Voltage - Breakdown (Min) 7.8V (Typ)
Voltage - Clamping (Max) @ Ipp 12.5V (Typ)
Current - Peak Pulse (10/1000µs) 2A (8/20µs)
Power - Peak Pulse 20W
Power Line Protection No
Applications General Purpose
Temperature Range - Operating -40°C ~ 125°C (TA)
Mounting SMD (SMT)
Package / Case 01005 (0402 Metric)
Supplier Device Package 01005, Flip Chip
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0080
Other Names F9963CT,F9963DKR,F9963TR,-SP3042-01WTG
Standard Package 15,000
Win Source Part Number 1169259-SP3042-01WTG
Ultra Librarian 3D Model Ultra Librarian SP3042-01WTG CAD Model

Description

The SP3042-01WTG is a bidirectional single channel Zener diode from Littelfuse Inc.

  • Type: Zener Diode
  • Channel: Single Channel
  • Direction: Bidirectional
  • Mounting Type: Surface Mount Device
  • Package: 01005 (0402 metric)
  • Application: General Purpose
  • Reverse Standoff Voltage: 5.3V (Max)
  • Breakdown Voltage: 7.8V (Typ)
  • Clamping Voltage: 12.5V (Typ)
  • Peak Pulse Power: 20W
  • Peak Pulse Current: 2A (8/20µs)
  • RoHS Compliance: Compliant
  • Operating Temperature: -40°C to 125°C (TA)
