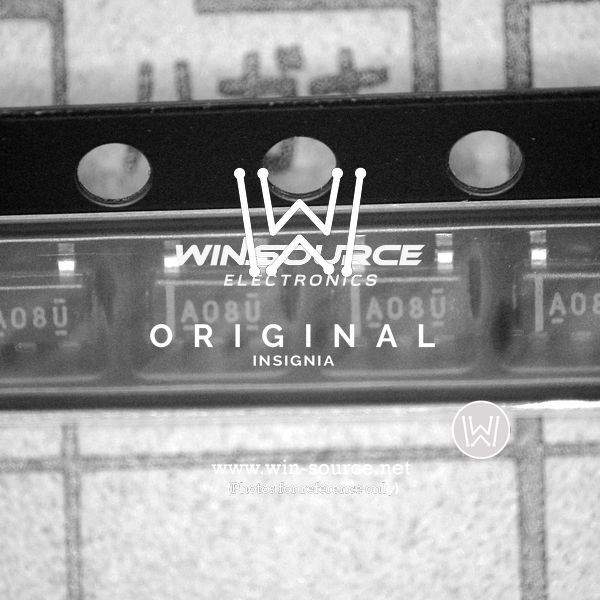

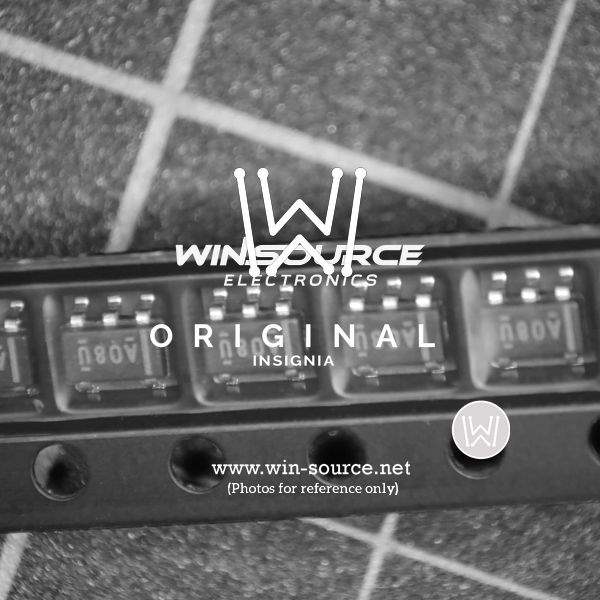

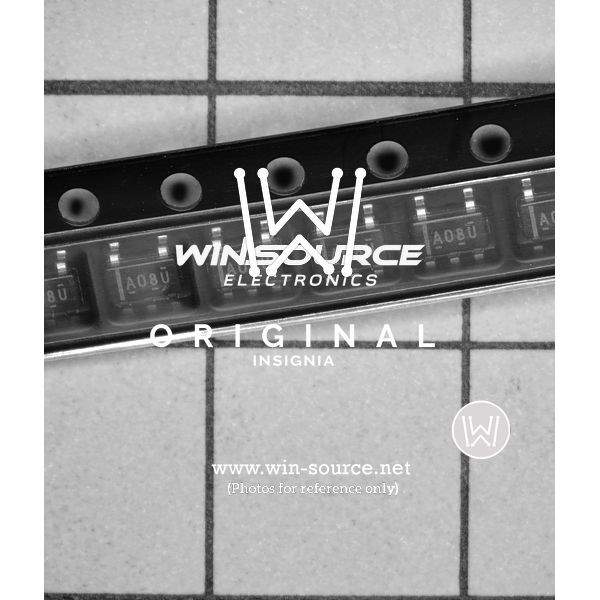

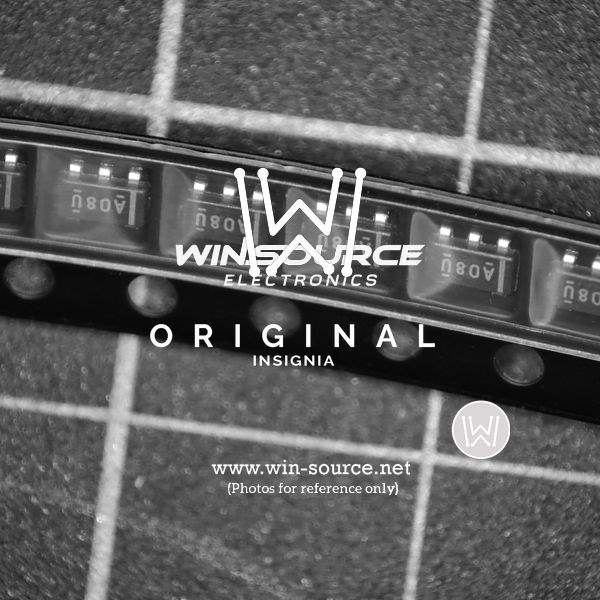

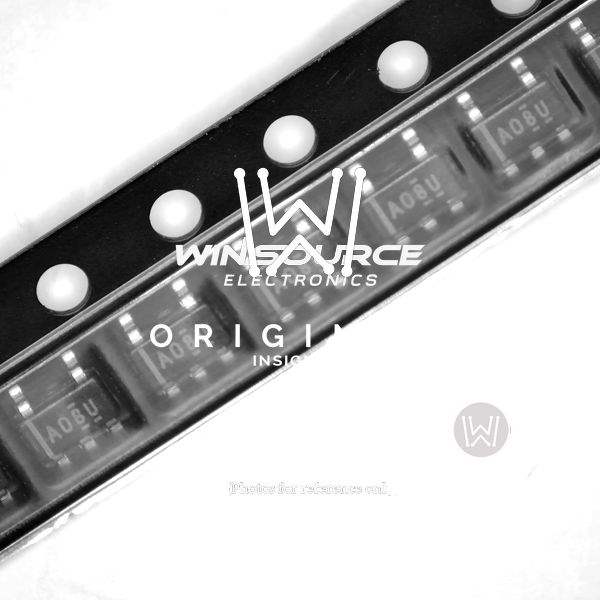

SN74AHC1G08QDBVRQ1 Real Image SN74AHC1G08QDBVRQ1 real image5864 SN74AHC1G08QDBVRQ1 real image5865 SN74AHC1G08QDBVRQ1 Real Image1 SN74AHC1G08QDBVRQ1 Real Image2 SN74AHC1G08QDBVRQ1 Real Image3
Same model may have multiple batches, images only for reference.
SN74AHC1G08QDBVRQ1 Real Image SN74AHC1G08QDBVRQ1 real image5864 SN74AHC1G08QDBVRQ1 real image5865 SN74AHC1G08QDBVRQ1 Real Image1 SN74AHC1G08QDBVRQ1 Real Image2 SN74AHC1G08QDBVRQ1 Real Image3
SN74AHC1G08QDBVRQ1 Real Image SN74AHC1G08QDBVRQ1 real image5864 SN74AHC1G08QDBVRQ1 real image5865 SN74AHC1G08QDBVRQ1 Real Image1 SN74AHC1G08QDBVRQ1 Real Image2 SN74AHC1G08QDBVRQ1 Real Image3
Same model may have multiple batches, images only for reference.

SN74AHC1G08QDBVRQ1

Part No SN74AHC1G08QDBVRQ1
Manufacturer Texas Instruments
Catalog Logic - Gates and Inverters
Description IC GATE AND 1CH 2-INP SOT-23-5
Datasheet
SN74AHC1G08QDBVRQ1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Reel - TR
Status Active
Logic Type AND Gate
Number of Circuits 1
Number of Inputs 2
Supply Voltage - Operating 2 V to 5.5 V
Current - Quiescent (Max) 1μA
Current - Output High, Low 8mA, 8mA
Logic Level - Low 0.5 V to 1.65 V
Logic Level - High 1.5 V to 3.85 V
Max Propagation Delay @ V, Max CL 7.9ns @ 5V, 50pF
Temperature Range - Operating -40°C to 125°C
Mounting SMD (SMT)
Case / Package SOT-23-5
Dimension SC-74A, SOT-753
Win Source Part Number 065180-SN74AHC1G08QDBVRQ1
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian SN74AHC1G08QDBVRQ1 CAD Model

Description

The SN74AHC1G08QDBVRQ1 is a high-performance, single 2-input positive-AND gate integrated circuit (IC) from Texas Instruments, one of the leading global semiconductor companies.

  • Application: Automotive
  • Operating Voltage: 2 to 5.5 volts
  • Operating Temperature: -40 to 125 degrees Celsius
  • Propagation Delay Time: 6.5ns
  • Package: small 5-pin SOT-23 package
  • Drive capability: 8mA @ 4.5V
