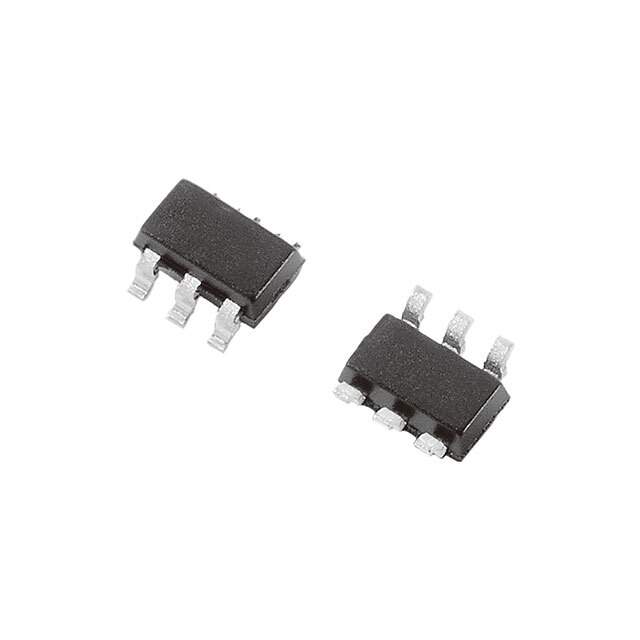

SP3025-04HTG Real Image
Same model may have multiple batches, images only for reference.

SP3025-04HTG

Part No SP3025-04HTG
Manufacturer Littelfuse Inc.
Catalog TVS - Diodes
Description TVS DIODE ARRAY 2.5V SOT23-6L / 11V Clamp 30A (8/20µs) Ipp Tvs Diode Surface Mount SOT-23-6L
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>TVS - Diodes
Mfr Littelfuse Inc.
Series SP3025, SPA®
Package Tape & Reel
Type Zener
Unidirectional Channels 4
Voltage - Reverse Standoff (Typ) 2.5V (Max)
Voltage - Breakdown (Min) 5.5V
Voltage - Clamping (Max) @ Ipp 11V
Current - Peak Pulse (10/1000µs) 30A (8/20µs)
Power Line Protection No
Applications Ethernet
Capacitance @ Frequency 2.5pF @ 1MHz
Temperature Range - Operating -40°C ~ 125°C
Mounting SMD (SMT)
Package / Case SOT-23-6
Supplier Device Package SOT-23-6L
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0080
Other Names 18-SP3025-04HTGTR,18-SP3025-04HTGCT,18-SP3025-04HTGDKR
Standard Package 3,000
Win Source Part Number 1127078-SP3025-04HTG
Ultra Librarian 3D Model Ultra Librarian SP3025-04HTG CAD Model

Description

The SP3025, SPA® series of Zener diodes are ideal for Ethernet applications that require circuit protection. These diodes come in a tape and reel package with a standard package of 3,000.

  • Mounting: SMD (SMT)
  • Channels: four unidirectional
  • Voltage Reverse Standoff: 2.5V (Max)
  • Voltage Breakdown: 5.5V (Min)
  • Voltage Clamping (Max) @ Ipp: 11V
  • Capacitance @ Frequency: 2.5pF @ 1MHz
  • Current Peak Pulse (10/1000µs): 30A (8/20µs)
  • Package/Case: SOT-23-6
  • Operating Temperature: -40°C ~ 125°C
  • Supplier Device Package: SOT-23-6L
  • MSL Level: 1 (Unlimited)
  • HTSUS: 8541.10.0080
  • Manufacturer: Littelfuse Inc.
