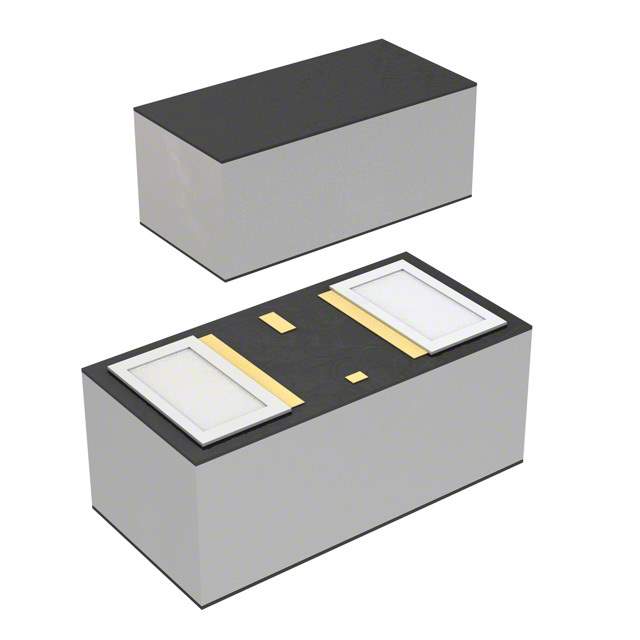

Same model may have multiple batches, images only for reference.

SP3022-01WTG

Name: SP3022-01WTG
Brand: Littelfuse Inc.
SKU: 716359
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	SP3022-01WTG
Manufacturer	Littelfuse Inc.
Catalog	TVS - Diodes
Description	TVS DIODE 5.3V 12V 0201 FLIPCHIP
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Circuit Protection
Manufacturer	Littelfuse Inc.
Packaging	Reel
Type	Zener
Bidirectional Channels	1
Voltage - Reverse Standoff	5.3V (Maximum)
Voltage - Breakdown (Minimum)	6.8V
Voltage - Clamping (Maximum) at Ipp	12V
Current - Peak Pulse (10/1000μs)	1A (8/20μs)
Power - Peak Pulse	20W
Power Line Protection	No
Applications	Automotive
Temperature Range - Operating	-40°C ~ 125°C
Mounting Style	SMD
Manufacturer Package	2-XFDFN, FCDFN
Supplier Device Package	0201 FlipChip
Manufacturer Pack Quantity	1
MSL Level	1 (Unlimited)
Win Source Part Number	716359-SP3022-01WTG
Popularity	Low
Supply and Demand Status	Sufficient
Ultra Librarian 3D Model	Ultra Librarian SP3022-01WTG CAD Model

Alternative Products

Description

The SP3022-01WTG is a low popularity electronic component manufactured by Littelfuse Inc.

Application: Automotive
Channel Type: Bidirectional
Voltage - Reverse Standoff (Max): 5.3V
Voltage - Breakdown (Min): 6.8V
Voltage - Clamping (Max) @ Ipp: 12V
Current - Peak Pulse (10/1000μs): 1A (8/20μs)
Power - Peak Pulse: 20W
Supply and Demand Status: Sufficient
Manufacturer Pack Quantity: 1
MSL Level: 1 (Unlimited)
