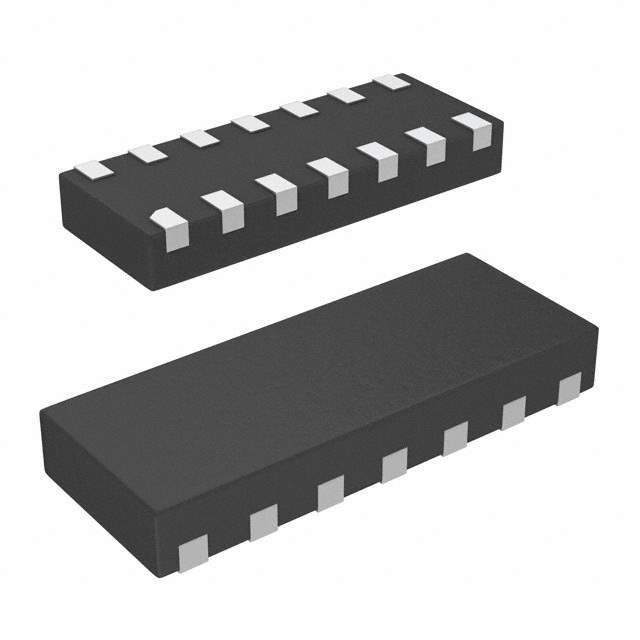

The SP3011-06UTG is a TVS (Transient Voltage Suppression) diode array designed by Littelfuse for protecting sensitive electronic equipment against ESD (Electrostatic Discharge), EFT (Electrical Fast Transients), and surge events. This device offers a robust and reliable protection solution for high-speed data interfaces and other vulnerable circuits, especially in portable and consumer electronics.

Applications:

• Smartphones and Tablets
• Portable Devices
• USB Ports
• HDMI Ports
• Ethernet Ports
• Medical Equipment

Features:

• Low Clamping Voltage: Provides effective protection by limiting voltage spikes.
• Low Capacitance: Ensures signal integrity in high-speed data applications.
• ESD Protection: Exceeds IEC 61000-4-2 standard for ESD immunity.
• EFT Protection: Provides protection against electrical fast transient bursts.
• Small Footprint: Minimizes board space requirements.
• Lead-Free and RoHS Compliant: Environmentally friendly.

Benefits:

• Improved System Reliability: Protects against transient voltage threats, reducing the risk of damage and failure.
• Enhanced Signal Integrity: Low capacitance ensures minimal impact on high-speed data signals.
• Reduced Downtime: Prevents system disruptions caused by ESD and other transient events.
• Simplified Design: Easy to implement in various applications.
• Cost-Effective Protection: Provides a reliable and affordable solution for protecting sensitive electronics.

Additional Details:

The SP3011-06UTG is designed to protect up to six I/O lines. It has a typical clamping voltage that is significantly lower than the breakdown voltage of protected components, thus offering superior protection. Its low dynamic resistance allows for fast response to transient events. The device is commonly used in applications where data integrity and system reliability are critical. Further details, including specific clamping voltage values, capacitance, and surge current ratings, can be found in the product datasheet.
