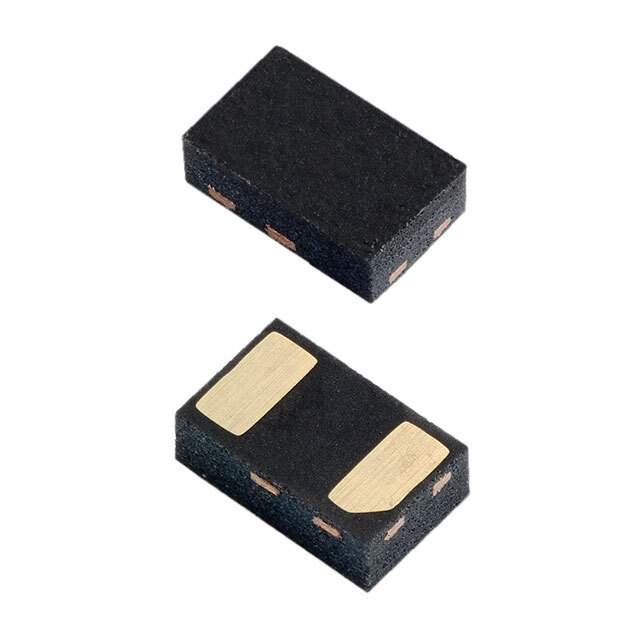

SP1112-01UTG Real Image
Same model may have multiple batches, images only for reference.

SP1112-01UTG

Part No SP1112-01UTG
Manufacturer Littelfuse Inc.
Catalog TVS - Diodes
Description TVS DIODE 12VWM 26.5VC 2DFN / 26.5V (Typ) Clamp 40A (8/20µs) Ipp Tvs Diode Surface Mount 2-DFN (1.6x1)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>TVS - Diodes
Mfr Littelfuse Inc.
Series SPA®
Package Tape & Reel
Type Zener
Unidirectional Channels 1
Voltage - Reverse Standoff (Typ) 12V (Max)
Voltage - Clamping (Max) @ Ipp 26.5V (Typ)
Current - Peak Pulse (10/1000µs) 40A (8/20µs)
Power Line Protection No
Applications General Purpose
Capacitance @ Frequency 230pF @ 1MHz
Temperature Range - Operating -40°C ~ 125°C (TA)
Mounting SMD (SMT)
Package / Case 0603 (1610 Metric)
Supplier Device Package 2-DFN (1.6x1)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0080
Other Names F10109DKR,-SP1112-01UTG,F10109CT,F10109TR
Standard Package 3,000
Win Source Part Number 1219265-SP1112-01UTG
Ultra Librarian 3D Model Ultra Librarian SP1112-01UTG CAD Model

Description

The SP1112-01UTG is a unidirectional TVS diode. It is from Littelfuse Inc.

  • Voltage-Reverse Standoff: 12V (Max)
  • Voltage-Clamping (Max) @ Ipp: 26.5V (Typ)
  • Capacitance @ Frequency: 230pF @ 1MHz
  • Current - Peak Pulse (10/1000µs): 40A (8/20µs)
  • Category: Circuit Protection>TVS - Diodes
  • Packaging: Tape & Reel
  • Standard Package: 3,000
  • Operating Temperature: -40°C ~ 125°C (TA)
