Same model may have multiple batches, images only for reference.

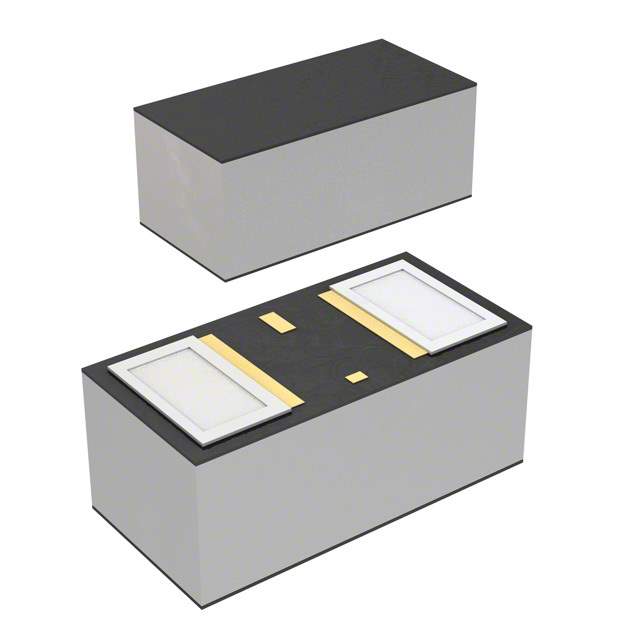

SP1007-01WTG Real Image
Same model may have multiple batches, images only for reference.

SP1007-01WTG

Part No SP1007-01WTG
Manufacturer Littelfuse Inc.
Catalog TVS - Diodes
Description TVS DIODE 6VWM 9.2VC 0201
Datasheet
SP1007-01WTG Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Packaging Reel - TR
Status Active
Type Zener
Bidirectional Channels 1
STAND-OFF Voltage (Vwm) 6V (Max)
Minimum Breakdown Voltage 7.8V (Typ)
Max Clamping Voltage 9.2V
Peak Pulse Current(Ippm) 5A (8/20μs)
Applications General Purpose
Temperature Range - Operating -40°C to 125°C (TJ)
Mounting SMD (SMT)
Case / Package 0201 Flipchip
Win Source Part Number 109877-SP1007-01WTG
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian SP1007-01WTG CAD Model

Description

The 109877-SP1007-01WTG is a Zener diode designed for general-purpose applications from Littelfuse Inc.

  • Application: general-purpose applications
  • Package: SMD (SMT) package
  • Channels: bidirectional channels
  • Clamping Voltage: 9.2V
  • STAND-OFF Voltage: 6V (Max)
  • Minimum Breakdown Voltage: 7.8V (Typ)
  • Peak Pulse Current: 5A (8/20μs)
  • Temperature Range: -40°C to 125°C (TJ)
  • Packaging: reel-TR packaging
  • Category: popular choice in the circuit protection category
  • Popularity: medium popularity
  • Supply and Demand: sufficient supply and demand status
