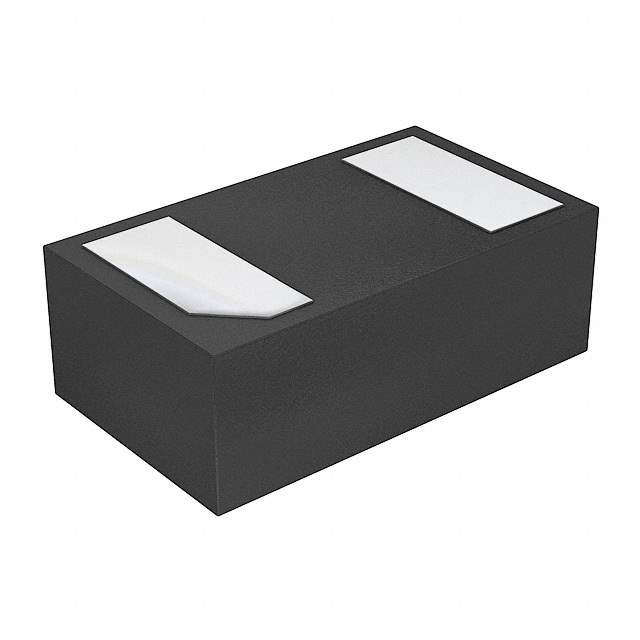

SP0402U-ELC-02ETG Real Image
Same model may have multiple batches, images only for reference.

SP0402U-ELC-02ETG

Part No SP0402U-ELC-02ETG
Manufacturer Littelfuse Inc.
Catalog TVS - Diodes
Description TVS DIODE 7VWM 13VC 0402/2DFN  /  13V (Typ) Clamp 2.2A (8/20µs) Ipp Tvs Diode Surface Mount 0402/2DFN (1x0.60)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>TVS - Diodes
Mfr Littelfuse Inc.
Series SPA®
Package Tape & Reel (TR),Cut Tape (CT)
Type Zener
Unidirectional Channels 2
Voltage - Reverse Standoff (Typ) 7V
Voltage - Breakdown (Min) 8.8V (Typ)
Voltage - Clamping (Max) @ Ipp 13V (Typ)
Current - Peak Pulse (10/1000µs) 2.2A (8/20µs)
Power Line Protection No
Applications General Purpose
Capacitance @ Frequency 0.3pF @ 1MHz
Temperature Range - Operating -30°C ~ 85°C (TA)
Mounting SMD (SMT)
Package / Case 0402 (1006 Metric)
Supplier Device Package 0402/2DFN (1x0.60)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0080
Other Names F9746TR,18-SP0402U-ELC-02ETGTR,18-SP0402U-ELC-02ETGCT,-1024-SP0402U-ELC-02ETGCT,F9746TR-ND
Standard Package 10,000
Win Source Part Number 1120963-SP0402U-ELC-02ETG
Ultra Librarian 3D Model Ultra Librarian SP0402U-ELC-02ETG CAD Model

Description

The Littelfuse Inc. 1120963-SP0402U-ELC-02ETG is a SPA® series Zener type TVS diode. It is designed for general purpose applications and comes in a tape & reel (TR) or cut tape (CT) package.

  • Series: SPA®
  • Diode Type: Zener
  • Application: General Purpose
  • Package: Tape & Reel (TR) or Cut Tape (CT)
  • Standard Package: 10,000
  • Mounting Style: SMD (SMT)
  • Number of Channels: 2
  • Polarity: Unidirectional
  • Voltage - Reverse Standoff (Typ): 7V
  • Voltage - Breakdown (Min): 8.8V (Typ)
  • Voltage - Clamping (Max) @ Ipp: 13V (Typ)
  • Current - Peak Pulse (10/1000µs): 2.2A (8/20µs)
  • Capacitance @ Frequency: 0.3pF @ 1MHz
  • MSL Level: 1 (Unlimited)
  • HTSUS Code: 8541.10.0080
  • Other Part Numbers: F9746TR, 18-SP0402U-ELC-02ETGTR, 18-SP0402U-ELC-02ETGCT, -1024-SP0402U-ELC-02ETGCT, and F9746TR-ND
