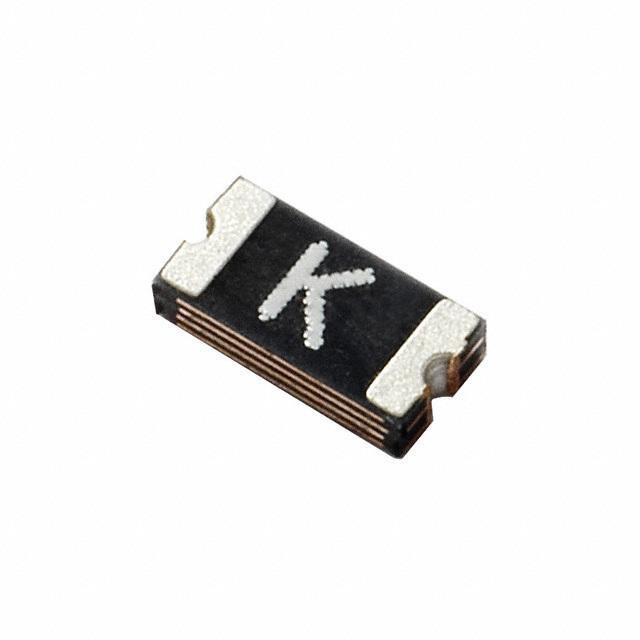

The SMD1206P075TFT is a PolySwitch PPTC (Polymeric Positive Temperature Coefficient) resettable fuse manufactured by Littelfuse. It's designed as a surface mount device for overcurrent protection in electronic circuits. In an overcurrent situation, the resistance of the PPTC dramatically increases, limiting the current flow and safeguarding downstream components from damage. Once the overcurrent condition is resolved and power is removed, the device cools down and automatically returns to its low-resistance state, restoring normal circuit operation without requiring manual fuse replacement.

Applications

• USB Ports: Providing overcurrent protection for USB ports in computers, laptops, and other devices.
• Mobile Devices: Protecting battery charging circuits and other internal components in smartphones and tablets.
• Power Supplies: Safeguarding power supplies from overload conditions.
• Game Consoles: Overcurrent protection for various circuits within game consoles.
• General Electronics: Used in a wide range of electronic devices for overcurrent protection.

Features

• Surface Mount Device (SMD): Designed for automated assembly processes.
• Resettable Fuse (PPTC): Automatically resets after the overcurrent condition is removed.
• Compact 1206 Package: Small footprint for space-constrained applications.
• Fast Trip Time: Quick response to overcurrent events.
• Low Resistance: Maintains a low resistance during normal operation.

Benefits

• Improved Circuit Protection: Provides reliable overcurrent protection.
• Reduced Downtime: Automatic reset minimizes downtime.
• Lower Maintenance Costs: Eliminates the need for fuse replacement.
• Enhanced Product Safety: Protects against fire hazards and other safety risks.
• Simplified Design: Easy integration into existing circuits.

Specifications:

Specific specifications should be obtained from the Littelfuse datasheet. Key parameters to look for include:

• Hold Current (Ihold): The maximum current the device can carry without tripping, typically around 0.75A.
• Trip Current (Itrip): The current at which the device will trip and increase its resistance.
• Voltage Rating (Vmax): The maximum voltage the device can withstand.
• Operating Temperature Range: The range of temperatures the device can operate within.

Always consult the official Littelfuse SMD1206P075TFT datasheet for accurate and complete specifications.
