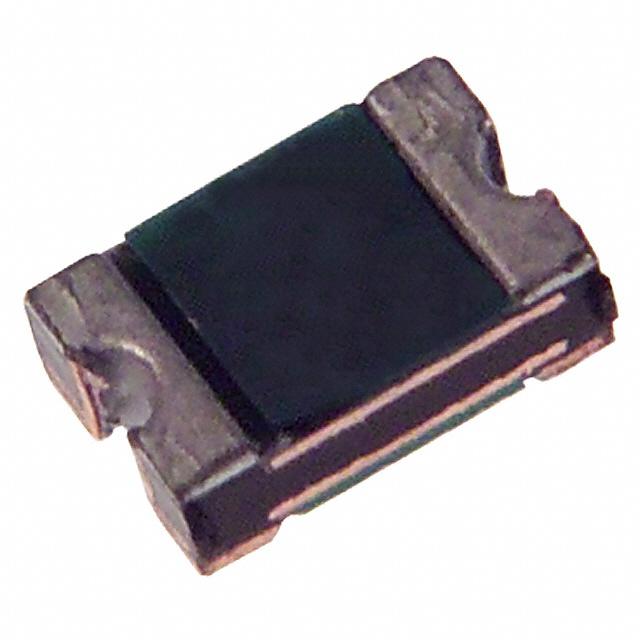

SMD0805P050TFA Littelfuse Inc.
Same model may have multiple batches, images only for reference.

SMD0805P050TFA

Part No SMD0805P050TFA
Manufacturer Littelfuse Inc.
Catalog PTC Resettable Fuses
Description FUSE RESETTABLE 6V 500MA 0805
Datasheet
SMD0805P050TFA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Packaging Reel - TR
Status Obsolete(EOL)
Type Polymeric
Voltage - Max 6V
Current - Max 40A
Current - Hold (Ih) (Max) 500mA
Current - Trip (It) 1A
Time to Trip 100ms
Resistance - Initial (Ri) (Min) 150 mOhm
Resistance - Post Trip (R1) (Max) 850 mOhm
Temperature Range - Operating -40°C to 85°C
Mounting SMD (SMT)
Dimension 0.083" L x 0.053" W (2.10mm x 1.35mm)
Thickness (Max) 0.039" (1.00mm)
Approvals cURus, TUV
Win Source Part Number 190782-SMD0805P050TFA
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian SMD0805P050TFA CAD Model

Description

The 190782-SMD0805P050TFA from Littelfuse Inc. is a circuit protection component.

  • Win Source part number: 190782-SMD0805P050TFA
  • Packaging: packaged in a reel-TR
  • Type: polymeric
  • Approvals: cURus and TUV
  • Mounting Method: SMD (SMT)
  • Thickness (max): 0.039 inches (1.00mm)
  • Voltage-max: 6V
  • Current-max: 40A
  • Current-hold (Ih) (max): 500mA
  • Current-trip (It): 1A
  • Time to trip: 100ms
  • Status: obsolete(EOL)
  • Temperature Range: -40°C to 85°C
  • Dimension: 0.083 inches L x 0.053 inches W (2.10mm x 1.35mm)
  • Resistance-initial (Ri) (min): 150 mOhm
  • Resistance-post trip (R1) (max): 850 mOhm
  • Supply and Demand Status: The supply and demand status of this product is currently in balance.
