Same model may have multiple batches, images only for reference.

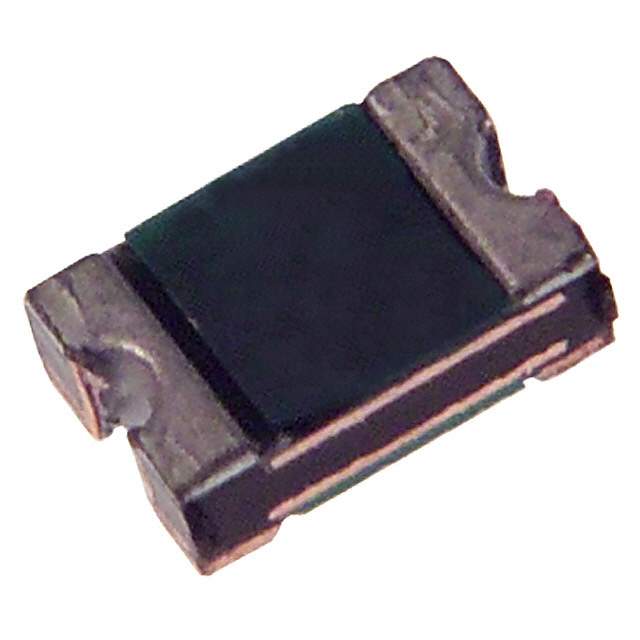

SMD0805P010TSA Real Image
Same model may have multiple batches, images only for reference.

SMD0805P010TSA

Part No SMD0805P010TSA
Manufacturer Littelfuse Inc.
Catalog PTC Resettable Fuses
Description PTC RESET FUSE 15V 100MA 0805
Datasheet
SMD0805P010TSA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - PTC Resettable Fuses
Mfr Littelfuse Inc.
Series POLY-FUSE®, SMD0805
Package Tape & Reel
Product Status Obsolete
Type Polymeric
Voltage - Max 15V
Current - Hold (Ih) (Max) 100 mA
Current - Trip (It) 300 mA
Current - Max 40 A
Time to Trip 1.5 s
Resistance - Initial (Ri) (Min) 1 Ohms
Resistance - Post Trip (R1) (Max) 6 Ohms
Temperature Range - Operating -40°C ~ 85°C
Mounting Type Surface Mount
Package / Case 0805 (2012 Metric), Concave
Size / Dimension 0.083" L x 0.053" W (2.10mm x 1.35mm)
Thickness (Max) 0.039" (1.00mm)
Approval Agency cURus, TUV
Standard Package 4,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.40.8070
Win Source Part Number 850752-SMD0805P010TSA
Ultra Librarian 3D Model Ultra Librarian SMD0805P010TSA CAD Model

Description

The SMD0805P010TSA is a polymeric PTC resettable fuse from the POLY-FUSE series by Littelfuse Inc.

  • Package: Surface Mount (0805)
  • Dimensions: 0.083" L x 0.053" W (2.10mm x 1.35mm)
  • Maximum Voltage Rating: 15V
  • Maximum Current Rating: 40A
  • Hold Current (Ih): 100mA
  • Trip Current (It): 300mA
  • Time to Trip: 1.5s
  • Package Quantity: 4,000 pcs
  • Operating Temperature Range: -40°C to 85°C
