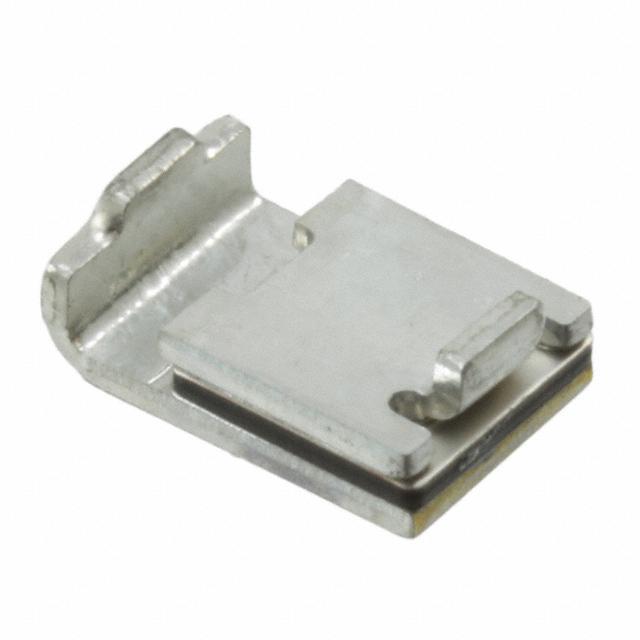

Same model may have multiple batches, images only for reference.
SMD075F/60-2 Littelfuse Inc.
Same model may have multiple batches, images only for reference.

SMD075F/60-2

Part No SMD075F/60-2
Manufacturer Littelfuse Inc.
Catalog PTC Resettable Fuses
Description POLYSWITCH 60V 750MA SMD / PTC Resettable Fuse 0.75A(hold) 1.5A(trip) 60VDC 10A 1.7W 0.3s 0.35Ohm SMD Solder Pad 2920 T/R Automotive
Datasheet
SMD075F/60-2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Series PolySwitch, SMD
Packaging Reel package
Type Polymeric
Voltage - Max 60V
Current - Max 10A
Current - Hold (Ih) (Maximum) 750mA
Current - Trip (It) 1.5A
Time to Trip 300ms
Resistance - Initial (Ri) (Minimum) 350 mOhm
Operating Temperature Range -40°C ~ 85°C
Mounting SMD
Package 2-SMD
Dimension 0.290" L x 0.202" W (7.36mm x 5.12mm)
Thickness (Maximum) 0.125" (3.18mm)
Win Source Part Number 794696-SMD075F/60-2
Popularity Medium
Supply and Demand Status Balance
Family Name SMD
Introduction Date November 09, 2015
ECCN EAR99
Country of Origin China
Halogen Free Compliant
Estimated EOL Date 2028
Ultra Librarian 3D Model Ultra Librarian SMD075F/60-2 CAD Model

Description

The Littelfuse Inc. PolySwitch SMD series is a polymeric type circuit protection device.

  • Voltage Rating: 60V
  • Maximum Current: 10A
  • Current Trip: 1.5A
  • Time to Trip: 300ms
  • Package: 2-SMD
  • Dimension: 0.290" L x 0.202" W (7.36mm x 5.12mm)
  • Country of Origin: China
  • EOL: 2028
