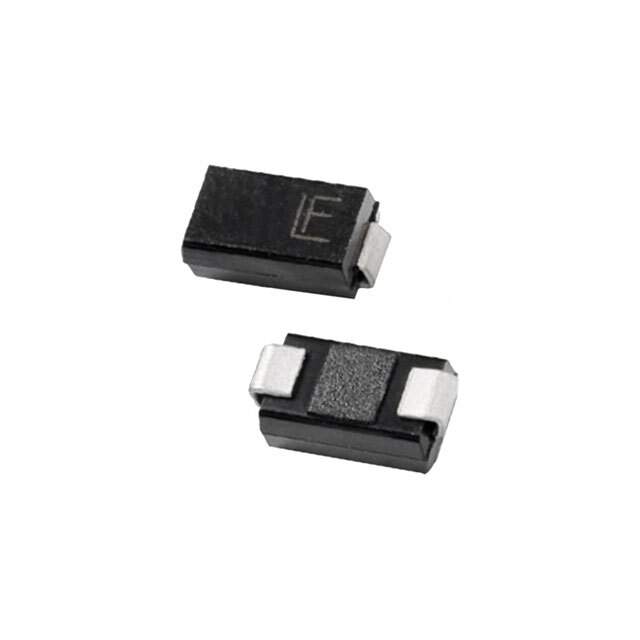

Same model may have multiple batches, images only for reference.

SMAJ5.0CA

Name: SMAJ5.0CA
Brand: Littelfuse Inc.
SKU: 327641
Availability: InStock
Rating: 4.85 (62 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	SMAJ5.0CA
Manufacturer	Littelfuse Inc.
Catalog	TVS - Diodes
Description	TVS DIODE 5VWM 9.2VC SMA
Datasheet	SMAJ5.0CA Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Circuit Protection
Manufacturer	Littelfuse Inc.
Packaging	Reel - TR
Status	Active
Type	Zener
Bidirectional Channels	1
STAND-OFF Voltage (Vwm)	5V
Minimum Breakdown Voltage	6.4V
Max Clamping Voltage	9.2V
Peak Pulse Current(Ippm)	43.5A
Power Dissipation - Pd	400W
Applications	General Purpose
Temperature Range - Operating	-55°C to 150°C (TJ)
Mounting	SMD (SMT)
Case / Package	DO-214AC (SMA)
Win Source Part Number	029067-SMAJ5.0CA
Family Name	SMAJ5.0CA
Introduction Date	October 07, 1998
ECCN	EAR99
Country of Origin	China
Halogen Free	Compliant
Estimated EOL Date	2024
Is this a common-used part?	Yes
Popularity	High
Supply and Demand Status	Sufficient
Application Field	Used in Computers & Computer Peripherals, Communications & Networking, Consumer Electronics, Industrial
Package	Tape & Reel (TR);Cut Tape (CT)
Product Status	Active
Voltage - Reverse Standoff (Typ)	5V
Voltage - Breakdown (Min)	6.4V
Voltage - Clamping (Max) @ Ipp	9.2V
Current - Peak Pulse (10/1000µs)	43.5A
Power - Peak Pulse	400W
Power Line Protection	No
Operating Temperature	-55°C ~ 150°C (TJ)
Grade	-
Mounting Type	Surface Mount
Package / Case	DO-214AC, SMA
Supplier Device Package	DO-214AC (SMA)
Operating Temperature	-65°C ~ 150°C (TJ)
Ultra Librarian 3D Model	Ultra Librarian SMAJ5.0CA CAD Model

Alternative Products

Description

The Littelfuse Inc. SMAJ5.0CA is a zener diode that is designed for general-purpose use.

Stand-off Voltage (Vwm): 5V
Minimum Breakdown Voltage: 6.4V
Peak Pulse Current (Ippm): 43.5A
Power Dissipation (Pd): 400W
Mounting: Surface mountable
Package: DO-214AC (SMA)
Temperature Range: -55°C to 150°C (TJ)
