The SJ6025NRP is a Thyristor-SCR that is part of the Discrete Semiconductor Products category.

• SCR Type: Standard Recovery

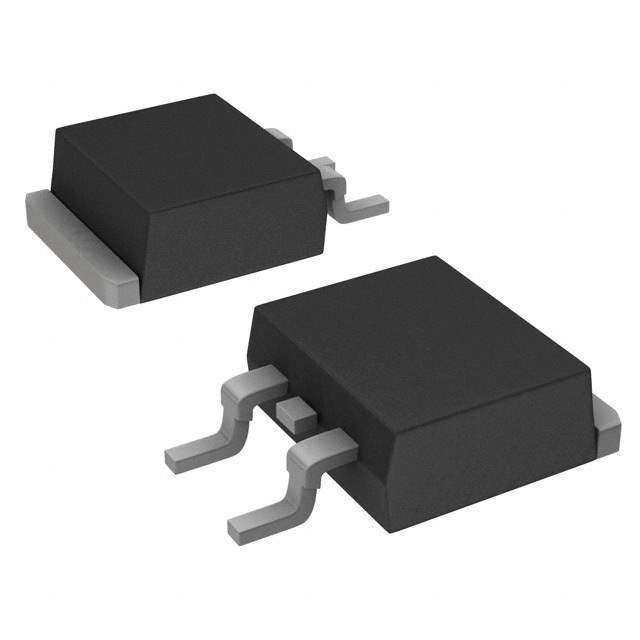

• Package: TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
• Mounting: SMD (SMT) technology
• Current - Hold (Ih) (Max): 75 mA
• Off-State Voltage: 600 V
• Gate Trigger Voltage (Vgt) (Max): 1.5 V
• Gate Trigger Current (Igt) (Max): 35 mA
• On-State Voltage (Vtm) (Max): 1.6 V
• On-State Current (It (AV)) (Max): 16 A
• On-State Current (It (RMS)) (Max): 25 A
• Current - Off-State (Max): 10 µA
• Non-Rep. Surge 50, 60Hz (Itsm): 300A, 350A
• Temperature Range: -40°C ~ 150°C (TJ)
