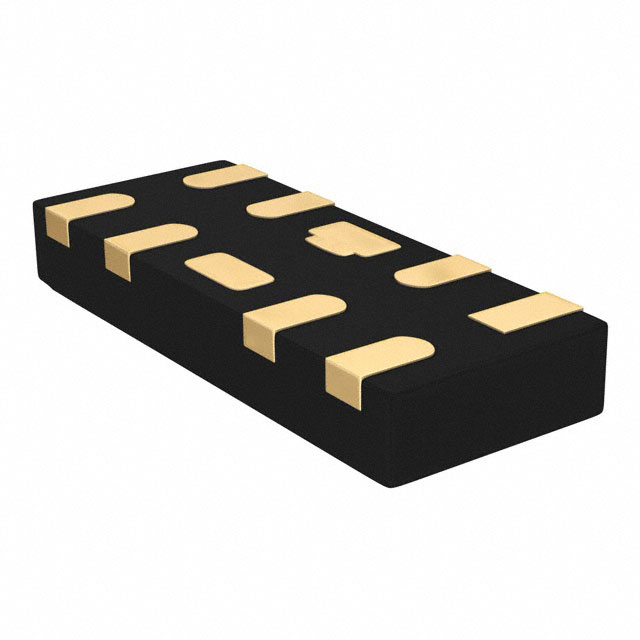

Same model may have multiple batches, images only for reference.
SESD1004Q4UG-0030-088 Littelfuse Inc.
Same model may have multiple batches, images only for reference.

SESD1004Q4UG-0030-088

Part No SESD1004Q4UG-0030-088
Manufacturer Littelfuse Inc.
Catalog TVS - Diodes
Description TVS DIODE 7VWM 13VC DFN
Datasheet
SESD1004Q4UG-0030-088 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Packaging Reel - TR
Status Active
Type Zener
Unidirectional Channels 4
STAND-OFF Voltage (Vwm) 7V (Max)
Minimum Breakdown Voltage 8.8V (Typ)
Max Clamping Voltage 13V (Typ)
Peak Pulse Current(Ippm) 2.2A (8/20μs)
Applications HDMI
Capacitance @ Frequency 0.3pF @ 3GHz
Temperature Range - Operating -55°C to 125°C (TJ)
Mounting SMD (SMT)
Case / Package 10-XDFN (1x2.5)
Win Source Part Number 110992-SESD1004Q4UG-0030-088
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian SESD1004Q4UG-0030-088 CAD Model

Description

The SESD1004Q4UG-0030-088 is a unidirectional TVS diode manufactured by Littelfuse Inc.

  • Application: HDMI
  • Type: Zener diode
  • Capacitance: 0.3pF @ 3GHz
  • Stand-off Voltage (Max): 7V
  • Peak Pulse Current: 2.2A (8/20μs)
  • Operating Temperature: -55°C to 125°C (TJ)
