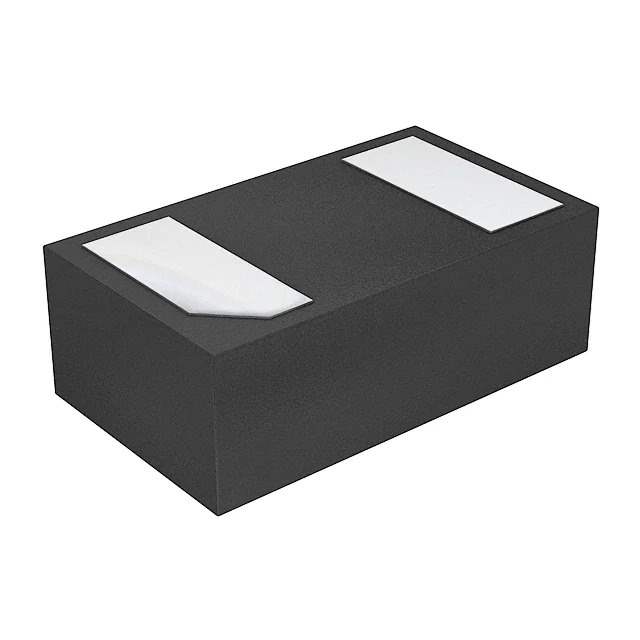

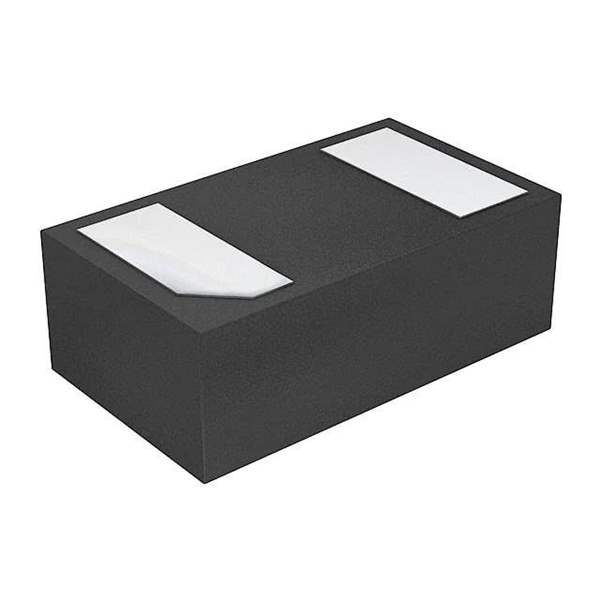

SESD0402X1BN-0010-098

Name: SESD0402X1BN-0010-098
Brand: Littelfuse Inc.
SKU: 665058
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	SESD0402X1BN-0010-098
Manufacturer	Littelfuse Inc.
Catalog	TVS - Diodes
Description	TVS DIODE 7VWM 10VC 0402
Datasheet	SESD0402X1BN-0010-098 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Circuit Protection - Transient Voltage Suppressors (TVS) - TVS Diodes
Mfr	Littelfuse Inc.
Series	Automotive, AEC-Q101, SESD, SPA®
Package	Tape & Reel
Product Status	Active
Type	Zener
Bidirectional Channels	1
Voltage - Reverse Standoff (Typ)	7V (Max)
Voltage - Breakdown (Min)	9.8V (Typ)
Voltage - Clamping (Max) @ Ipp	10V (Typ)
Current - Peak Pulse (10/1000µs)	2A (8/20µs)
Power Line Protection	No
Applications	Automotive, HDMI
Capacitance @ Frequency	0.1pF @ 3GHz
Temperature Range - Operating	-55°C ~ 125°C (TJ)
Mounting Type	Surface Mount
Package / Case	2-XDFN
Supplier Device Package	0402
Standard Package	10,000 pcs
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8541.10.0080
California Prop 65	Warning Information
Win Source Part Number	665058-SESD0402X1BN-0010-098
Ultra Librarian 3D Model	Ultra Librarian SESD0402X1BN-0010-098 CAD Model

Alternative Products

Description

The SESD0402X1BN-0010-098 is a Zener TVS diode from Littelfuse's automotive series.

Application: circuit protection in automotive and HDMI applications
Reverse standoff voltage (max): 7V
Breakdown voltage (typ): 9.8V
Clamping voltage @ peak pulse current (Ipp): 10V (typ)
Channel: bidirectional
Peak pulse current rating: 2A (8/20μs)
Mounting: surface mountable
Package: compact 0402
Operating temperature range: -55°C to 125°C
Status: active
Description: ensuring its availability for automotive and HDMI applications requiring circuit protection.
