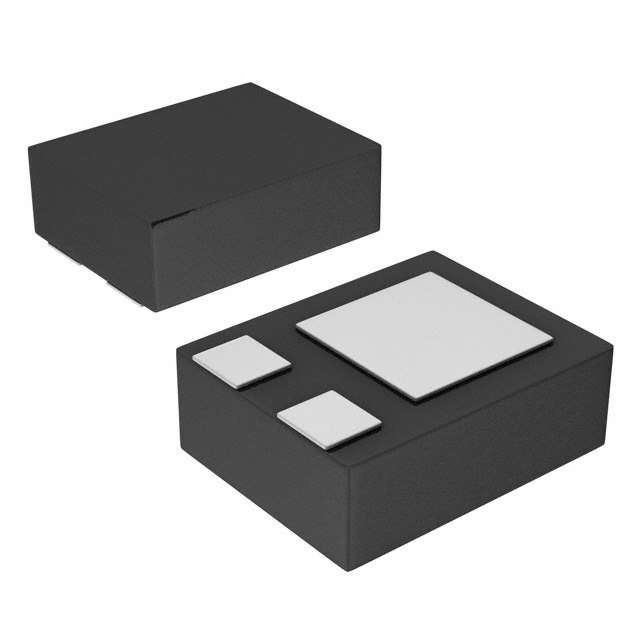

SESD0402Q2UG-0020-090 Littelfuse Inc.
Same model may have multiple batches, images only for reference.

SESD0402Q2UG-0020-090

Part No SESD0402Q2UG-0020-090
Manufacturer Littelfuse Inc.
Catalog TVS - Diodes
Description TVS DIODE 7VWM 9.2VC DFN
Datasheet
SESD0402Q2UG-0020-090 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Packaging Reel - TR
Status Active
Type Zener
Unidirectional Channels 2
STAND-OFF Voltage (Vwm) 7V (Max)
Minimum Breakdown Voltage 9V (Typ)
Max Clamping Voltage 9.2V (Typ)
Peak Pulse Current(Ippm) 2A (8/20μs)
Applications Automotive, HDMI
Capacitance @ Frequency 0.2pF @ 3GHz
Temperature Range - Operating -55°C to 125°C (TJ)
Mounting SMD (SMT)
Case / Package 0402/3DFN (0.6x1)
Win Source Part Number 109860-SESD0402Q2UG-0020-090
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian SESD0402Q2UG-0020-090 CAD Model

Description

The 109860-SESD0402Q2UG-0020-090 is a Zener diode that is designed to provide protection against electrostatic discharge (ESD) and other transient voltage events.

  • Stand-off Voltage: 7V (Maximum)
  • Breakdown Voltage: 9V (Minimum)
  • Peak Pulse Current: 2A
  • Operating Temperature: -55°C to 125°C
  • Applications: It is ideal for use in automotive and HDMI applications.
  • Benefit: The 109860-SESD0402Q2UG-0020-090 is a reliable and efficient Zener diode that will help protect your electronic devices from voltage spikes and other transient events.
