Same model may have multiple batches, images only for reference.

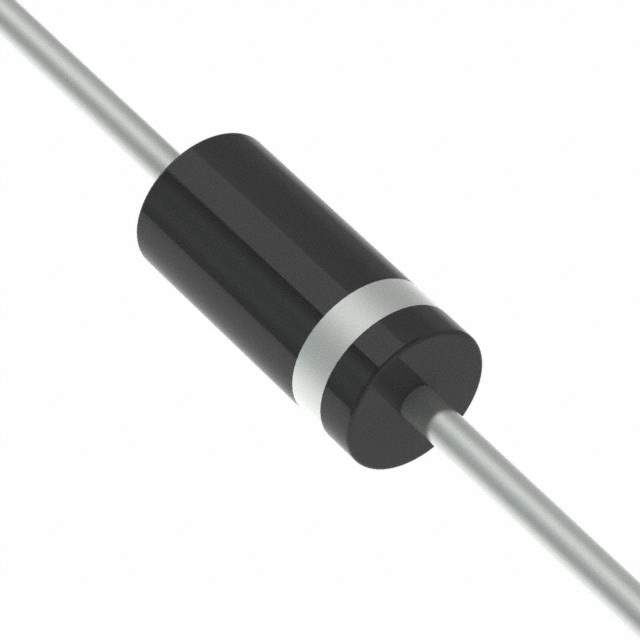

SA6.5A Real Image
Same model may have multiple batches, images only for reference.

SA6.5A

Part No SA6.5A
Manufacturer Littelfuse Inc.
Catalog TVS - Diodes
Description TVS DIODE 6.5VWM 11.2VC DO204AC
Datasheet
SA6.5A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Packaging Reel - TR
Status Active
Type Zener
Unidirectional Channels 1
STAND-OFF Voltage (Vwm) 6.5V
Minimum Breakdown Voltage 7.22V
Max Clamping Voltage 11.2V
Peak Pulse Current(Ippm) 45.5A
Power Dissipation - Pd 500W
Applications General Purpose
Temperature Range - Operating -55°C to 175°C (TJ)
Mounting Through Hole
Case / Package DO-204AC (DO-15)
Win Source Part Number 028021-SA6.5A
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian SA6.5A CAD Model

Description

The Littelfuse Inc. 028021-SA6.5A is a zener type electronic component that is used for general purpose applications.

  • Applications: general purpose applications
  • Mounting: through hole
  • Channel: unidirectional
  • Case / Package: DO-204AC (DO-15)
  • STAND-OFF Voltage (Vwm): 6.5V
  • Minimum Breakdown Voltage: 7.22V
  • Max Clamping Voltage: 11.2V
  • Peak Pulse Current(Ippm): 45.5A
  • Power Dissipation - Pd: 500W
