Same model may have multiple batches, images only for reference.

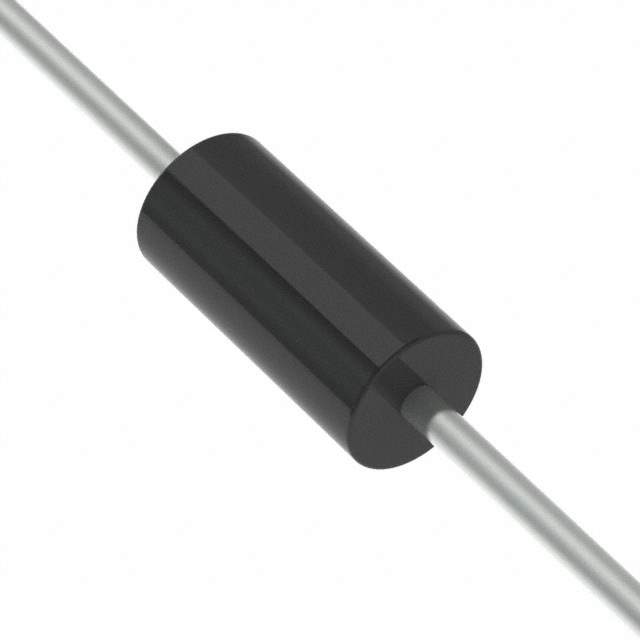

SA40CA Real Image
Same model may have multiple batches, images only for reference.

SA40CA

Part No SA40CA
Manufacturer Littelfuse Inc.
Catalog TVS - Diodes
Description TVS DIODE 40VWM 64.5VC DO204AC
Datasheet
SA40CA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Packaging Reel - TR
Status Active
Type Zener
Bidirectional Channels 1
STAND-OFF Voltage (Vwm) 40V
Minimum Breakdown Voltage 44.4V
Max Clamping Voltage 64.5V
Peak Pulse Current(Ippm) 7.9A
Power Dissipation - Pd 500W
Applications General Purpose
Temperature Range - Operating -55°C to 175°C (TJ)
Mounting Through Hole
Case / Package DO-204AC (DO-15)
Win Source Part Number 042511-SA40CA
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian SA40CA CAD Model

Description

The Littelfuse Inc. SA40CA is a zener diode that is designed for general-purpose applications.

  • Mounting Type: through-hole
  • Package: DO-204AC (DO-15)
  • Stand-off Voltage (Vwm): 40V
  • Minimum Breakdown Voltage: 44.4V
  • Max Clamping Voltage: 64.5V
  • Peak Pulse Current (Ippm): 7.9A
  • Power Dissipation (Pd): 500W
  • Product Status: active
  • Popularity: medium popularity
